Kubota ZG127S

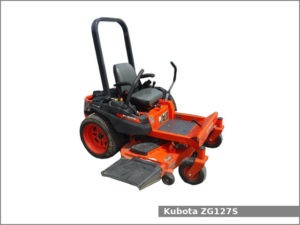

Kubota ZG127SThe Kubota ZG127S is a 2WD zero-turn mower from the ZG100 series. This tractor was manufactured by Kubota during 2013. The Kubota ZG127S is equipped with a 0.7 L (44.2 cu·in) V-twin gasoline engine and a hydrostatic transmission with infinite forward and reverse gears.

The Kubota ZG127S zero-turn mower used the GH734V engine. It is a 0.7 L, 725 cm2, (44.2 cu·in) V-twin naturally aspirated gasoline engine with 83.0 mm (3.27 in) of the cylinder bore and 67.0 mm (2.64 in) of the piston stroke. This engine produced 27.3 PS (20.1 kW; 27.0 HP) at 3,600 rpm of output power.

The Kubota ZG127S is equipped with differential power steering, mechanical cog brakes, two-post fixed ROPS, 16.0 liters (4.2 US gal.; 3.5 Imp. gal) fuel tank, and mid-mount the Kubota RCK54P-127Z – 54 inches (1,370 mm) mower deck with 3-blades.

Kubota ZG127S Specifications

General Specifications
Model Kubota ZG127S
Length 1,940 mm (76.4 in)
Width 1,200 mm (47.2 in)
Height 1,650 mm (65 in)
Wheel base 1,150 mm (45.3 in)
Ground clearance 123 mm (4.8 in)
Weight 350 kg (772 lbs)
Fuel tank capacity 16.0 liters (4.2 US gal.; 3.5 Imp. gal)
Battery 12V, CCA: 300A
Cabin type Two-post fixed ROPS
Engine
Engine model GH734V
Engine type Four-stroke, air-cooled, V-twin
Cylinders 2
Fuel type Gasoline
Displacement 0.7 L, 725 cm2, (44.2 cu·in)
Bore and stroke 83.0 mm X 67.0 mm (3.27 in X 2.64 in)
Horsepower 27.3 PS (20.1 kW; 27.0 HP) at 3,600 rpm
Starter Electric
Oil capacity: 1.8 L (1.9 US. qt, 1.6 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD
Steering type Differential power
Brakes Mechanical cog
Transmission model Hydro-Gear ZT3100
Transmission type Hydrostatic
Gears Infinite forward and reverse
Speed Forward: 12.9 kmh (8 mph) Reverse: 6.4 (4 mph)
Tires
Front tires Lawn/turf: 11×4-5
Rear tires Lawn/turf: 22×10-14
PTO (Power take-off shaft)
Middle PTO type Independent with electric clutch
Middle PTO speed
