Lamborghini 105 Formula

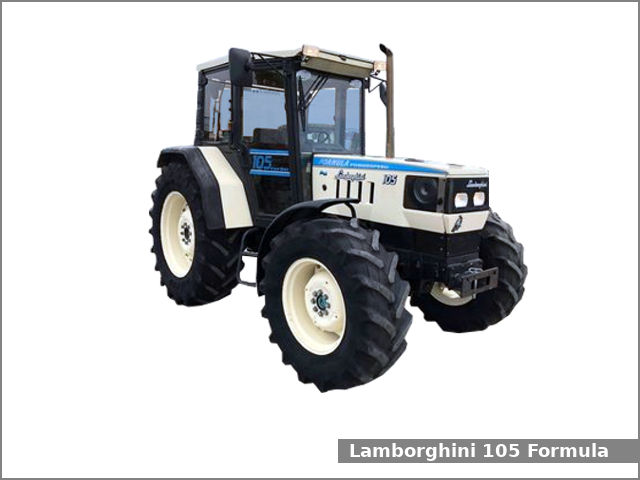

Lamborghini 105 FormulaThe Lamborghini 105 Formula is a 2WD/4WD row-crop tractor from the Formula series. This tractor was manufactured by the Lamborghini from 1989 to 1995. The Lamborghini 105 Formula is equipped with 4.0 L four-cylinder diesel engine and synchromesh transmission with 40 forward and 40 reverse gears.

The Lamborghini 105 Formula row-crop tractor used the Lamborghini 1000.4WTI engine. It is a 4.0 L, 4,000 cm2, (244.09 cu·in) four-cylinder turbocharged diesel engine with 105.0 mm (4.13 in) of cylinder bore and 115.5 mm (4.55 in) of piston stroke. This engine produced 103 PS (75.7 kW; 101.5 HP) at 2,500 rpm of maximum output power and 360 N·m (36.7 kg·m, 265.3 ft·lb) at 1,250 rpm of peak torque.

The Lamborghini 105 Formula tractor is equipped with hydrostatic reactive power steering, disc type hydraulically operated brakes, electro-hydraulic push bottom controlled rear and front differential lock, super deluxe platform “Q” cabin and 110.0 liters (29.1 US gal.; 24.2 Imp. gal) fuel tank.

Lamborghini 105 Formula Specifications

General Specifications
Model Lamborghini 105 Formula
Length 4,070 mm (160.2 in)
Width
Height 2,620 mm (103.1 in)
Wheel base 2,310 mm (90.9 in)
Weight 3,740 kg (8,245 lbs)
Fuel tank capacity 110.0 liters (29.1 US gal.; 24.2 Imp. gal)
Battery 12V 110A
Cabin type Super deluxe platform “Q” cab
Engine
Engine model Lamborghini 1000.4WTI
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 4.0 L, 4,000 cm2, (244.1 cu·in)
Bore and stroke 105.0 mm X 115.5 mm (4.13 in X 4.55 in)
Horsepower 103 PS (75.7 kW; 101.5 HP) at 2,500 rpm
Torque 360 N·m (36.7 kg·m, 265.3 ft·lb) at 1,250 rpm
Starter Electric
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Hydrostatic reactive power
Brakes Disc type hydraulically operated
Transmission model
Transmission type 5 speeds synchromesh with 4 ranges
Gears 40 forward and 40 reverse
Speed Forward: 37.6 kmh (23.4 mph) Reverse: 39.1 (24.3 mph)
Tires
Front tires Ag: 14.9/13-24
Rear tires Ag: 16.9/14-34
Three-Point Hitch
Caterogy II
Control type Draft, mix, float and position control
Lift capacity 4,760 kg (10,500 lbs)
PTO (Power take-off shaft)
Rear PTO type Fully independent hydraulically operated
Rear PTO spped 540/1000 rpm
