McCormick-Deering W9

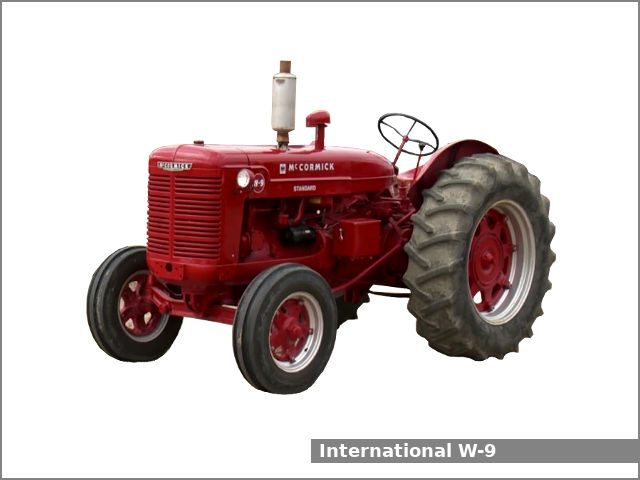

McCormick-Deering W9The McCormick-Deering W9 is a 2WD standard-tread tractor from the series. This tractor was manufactured by McCormick-Deering (a part of International Harvester) in Milwaukee, Wisconsin, USA and Melrose Park, Illinois, USA from 1940 to 1953.

The McCormick-Deering W9 is equipped with one of two engines: a 5.5 L (334.5 cu·in) four-cylinder gasoline engine or a 5.5 L (334.5 cu·in) four-cylinder gasoline engine and a sliding gear transmission with 5 forward and 1 reverse gears.

The tractor could be equipped with the following engines:

  • International Harvester. It is a 5.5 L, 5,482 cm2, (334.5 cu·in) four-cylinder natural aspirated gasoline engine with 112.0 mm (4.41 in) of the cylinder bore and 140.0 mm (5.51 in) of the piston stroke. The compression ratio rating is 5.4:1.
  • International Harvester. It is a 5.5 L, 5,482 cm2, (334.5 cu·in) four-cylinder natural aspirated distillate engine. The cylinder bore is 112.0 mm (4.41 in) and the piston stroke is 140.0 mm (5.51 in).

The McCormick-Deering W9 is equipped with manual worm-type gear steering, differential external contracting band brakes, open operator station and 136.3 liters (36 US gal.; 30 Imp. gal) fuel tank.

McCormick-Deering W9 Specifications

General Specifications
Model McCormick-Deering W9
Length 3,400 mm (133.9 in)
Width 1,730 mm (68.1 in)
Height 1,670 mm (65.7 in)
Wheel base
Weight (operating) 2,880 kg (6,349 lbs)
Fuel tank capacity 136.3 liters (36 US gal.; 30 Imp. gal)
Battery
Cabin type Open operator station
Engine
Engine model International Harvester
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Gasoline
Displacement 5.5 L, 5,482 cm2, (334.5 cu·in)
Bore and stroke 112.0 mm X 140.0 mm (4.41 in X 5.51 in)
Compression ratio 5.4:1
Horsepower
Starter Electric
Coolant capacity: 41.6 L (44 US. qt, 36.6 Imp. qt.)
Engine
Engine model International Harvester
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Distillate
Displacement 5.5 L, 5,482 cm2, (334.5 cu·in)
Bore and stroke 112.0 mm X 140.0 mm (4.41 in X 5.51 in)
Horsepower
Starter Electric
Coolant capacity: 37.9 L (40 US. qt, 33.3 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual worm-type gear
Brakes Differential external contracting band
Transmission model
Transmission type Sliding gear
Gears 5 forward and 1 reverse
Speed Forward: 24.9 kmh (15.5 mph) Reverse: 4.4 kmh (2.7 mph)
Tires
Front tires Ag: 7.50-18, 30×6 (steel)
Rear tires Ag: 14-34, 15-34, 48×12 (steel)
