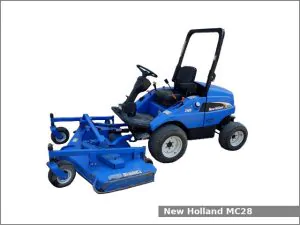

New Holland MC28

New Holland MC28The New Holland MC28 is a 2WD or 4WD lawn tractor manufactured by New Holland from 1999 to 2008. The New Holland MC28 is equipped with a 1.3 L (81.1 cu·in) three-cylinder diesel engine and a hydrostatic transmission with infinite forward and reverse (2-range) gears.

The NH MC28 lawn tractor used the Shibaura engine. It is a 1.3 L, 1,329 cm2, (81.1 cu·in) three-cylinder natural aspirated diesel engine with 84.0 mm (3.31 in) of the cylinder bore and 80.0 mm (3.15 in) of the piston stroke. This engine produced 28.4 PS (20.9 kW; 28.0 HP) of output power.

The New Holland MC28 is equipped with power steering, wet disc brakes, Two-post folding ROPS, or an optional four-post canopy, and 50.3 liters (13.3 US gal.; 11.1 Imp. gal) fuel tank.

Following attachments are available for the New Holland MC28 lawn tractor:

  • Front-mount New Holland 60 in (1,520 mm) mower deck with 3-blade
  • Front-mount New Holland 72 in (1,820 mm) mower deck
  • Front-mount New Holland 84 in (2,130 mm) mower deck
  • Front-mount New Holland 60 in (1,520 mm) blade
  • Front-mount New Holland 52 in (1,320 mm) snow blower
  • Front-mount New Holland 62 in (1,570 mm) snow blower

New Holland MC28 Specifications

General Specifications
Model New Holland MC28
Length 2,410 mm (94.9 in)
Width 1,210 mm (47.6 in)
Height (ROPS) 1,930 mm (76 in)
Wheel base 1,240 mm (48.8 in)
Weight 2WD: 712 kg (1,570 lbs)
4WD: 748 kg (1,649 lbs)
Fuel tank capacity 50.3 liters (13.3 US gal.; 11.1 Imp. gal)
Battery 12V, CCA 490A
Cabin type Two-post folding ROPS or optional four-post canopy
Engine
Engine model Shibaura
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 1.3 L, 1,329 cm2, (81.1 cu·in)
Bore and stroke 84.0 mm X 80.0 mm (3.31 in X 3.15 in)
Horsepower 28.4 PS (20.9 kW; 28.0 HP)
Starter Electric
Transmission and chassis
Chassis 4×2 2WD or 4×4 4WD
Steering type Power
Brakes Wet disc
Differential lock Mechanical front
Transmission model
Transmission type Hydrostatic
Gears Infinite forward and reverse (2-range)
Speed Forward: 17.2 kmh (10.7 mph) Reverse: 11.3 kmh (7.0 mph)
Tires
Front tires Lawn/turf: 23×10.50-12
Rear tires Lawn/turf: 20×8.00-10
PTO (Power take-off shaft)
Front PTO type Independent
Front PTO speed 2,200 rpm
Hydraulic system
Hydraulic type Open center
Valves 1 (optional)
Pump flow 2.4 gpm (9.1 lpm)
