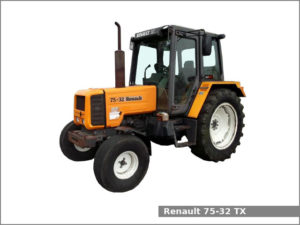

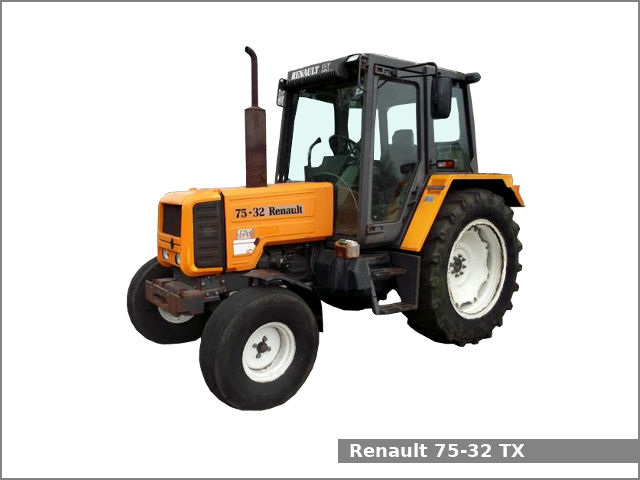

Renault 75-32 TX

Renault 75-32 TXThe Renault 75-32 TX is a 2WD utility tractor manufactured by Renault from 1989 to 1993. The Renault 75-32 TX is equipped with 4.2 L, four-cylinder diesel engine and transmission with 12 forward and reverse gears

The Renault 75-32 TX utility tractor used 4.2 L, 4,155 cm2, (253 cu·in) four-cylinder MWM D226-4 diesel engine with 105.0 mm (4.13 in) of cylinder bore and 120.0 mm (4.72 in) of piston stroke. It is a direct injection diesel engine with wet type cylinder sleeves. This engine produced 71 PS (52.2 kW; 70 HP) at 2,350 rpm of maximum output power and 240.0 N·m (24.5 kg·m, 176.9 ft·lb) at 1,500 rpm of max. torque.

The Renault 75-32 TX is equipped with hydrostatic power steering, wet disc brakes and 120.0 liters (31.7 US gal.; 26.4 Imp. gal) fuel tank.

Renault 75-32 TX Specifications

General Specifications
Model Renault 75-32 TX
Length 3,920 mm (154.3 in)
Height 2,770 mm (109.1 in)
Wheel base 2,430 mm (95.7 in)
Weight 3,330 kg (7,342 lbs)
Fuel tank capacity 120.0 liters (31.7 US gal.; 26.4 Imp. gal)
Battery 12V
Cabin type Cab (standard)
Engine model MWM D226-4
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 4.2 L, 4,155 cm2, (253 cu·in)
Bore and stroke 105.0 mm X 120.0 mm (4.13 in X 4.72 in)
Horsepower 71 PS (52.2 kW; 70 HP) at 2,350 rpm
Torque 240.0 N·m (24.5 kg·m, 176.9 ft·lb) at 1,500 rpm
Starter Electric
Oil type 10W-30, API CD or CE
Transmission and chassis
Chassis 4×2 2WD
Steering type Hydrostatic power
Brakes Wet disc
Transmission model
Transmission type
Gears 12 forward and reverse
Front tires Ag: 7.50-18
Rear tires Ag: 16.9-34
Three-Point Hitch
Control type
Lift capacity 3750 kg (8269 lbs)
PTO (Power take-off shaft)
Rear PTO type
Rear PTO spped 540/1000 rpm
Hydraulic system
Hydraulic type
Total flow 10.6 gpm (40.1 lpm)
