Snapper 281016BE SR1028

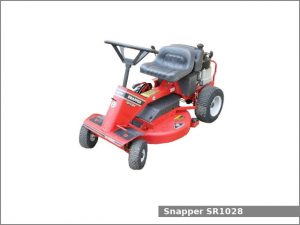

Snapper 281016BE SR1028The Snapper SR1028 is a 2WD riding mower from the 16 series. This tractor was manufactured by Snapper from 1997 to 1998. The Snapper SR1028 is equipped with a 0.5 L (28.4 cu·in) single-cylinder gasoline engine and a friction disc transmission with 5 forward and 1 reverse gears.

The Snapper 281016BE riding mower used the Briggs & Stratton engine. It is a 0.5 L, 465 cm2, (28.4 cu·in) single-cylinder natural aspirated gasoline engine with 87.0 mm (3.43 in) of the cylinder bore and 78.0 mm (3.07 in) of the piston stroke. This engine produced 10.2 PS (7.5 kW; 10.0 HP) at 3,600 rpm of output power.

The Snapper SR1028 is equipped with manual steering, drum brakes, open operator station and 6.6 liters (1.7 US gal.; 1.5 Imp. gal) fuel tank.

Following attachments are available for the Snapper SR1028 riding mower:

  • Mid-mount Snapper 710 mm (28 inches) mower deck with 1-blade
  • Front-mount Snapper 910 mm (36 inches) blade

Snapper SR1028 Specifications

General Specifications
ModelSnapper 281016BE SR1028
Length–
Width–
Height–
Wheel base–
Weight153 kg (337 lbs)
Fuel tank capacity6.6 liters (1.7 US gal.; 1.5 Imp. gal)
Battery12V, CCA 140A
Cabin typeOpen operator station
Engine
Engine modelBriggs & Stratton
Engine typeFour-stroke, air-cooled, inline
Cylinders1
Fuel typeGasoline
Displacement0.5 L, 465 cm2, (28.4 cu·in)
Bore and stroke87.0 mm X 78.0 mm (3.43 in X 3.07 in)
Horsepower10.2 PS (7.5 kW; 10.1 HP) at 3,600 rpm
StarterElectric
Oil capacity:1.4 L (1.5 US. qt, 1.2 Imp. qt.)
Transmission and chassis
Chassis4×2 2WD
Steering typeManual
BrakesDrum
Transmission model–
Transmission typeFriction disc
Gears5 forward and 1 reverse
Speed Forward: 7.4 kmh (4.6 mph) Reverse: 3.1 kmh (1.9 mph)
Tires
Front tires Lawn/turf: 4.10×3.50
Rear tires Lawn/turf: 16×6.50-8
PTO (Power take-off shaft)
Middle PTO typeIndependent with manual clutch
Middle PTO speed–
