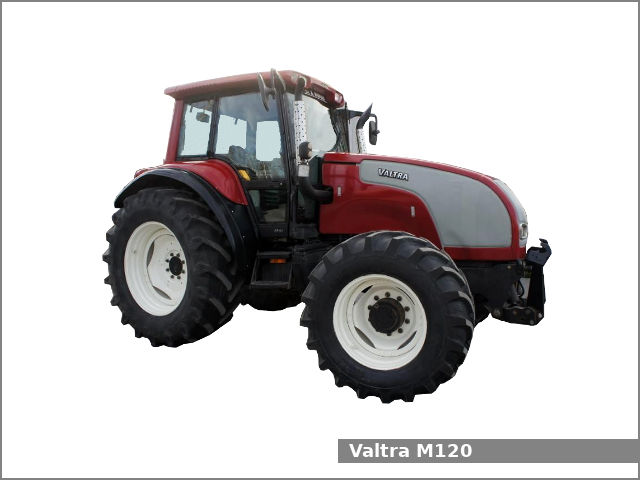

Valtra M120

Valtra M120The Valtra M120 is a 4WD utility tractor from the M series. This tractor was manufactured by the Valtra from 2004 to 2006. The Valtra M120 is equipped with 4.4 L four-cylinder diesel engine and semi-powershift transmission with 36 forward and 36 reverse gears.

The Valtra M120 farm tractor used the Sisu 44EWA engine. It is a 4.4 L, 4,399 cm2, (268 cu·in) four-cylinder turbocharged, intercooled diesel engine with 108.0 mm (4.25 in) of cylinder bore and 120.0 mm (4.72 in) of piston stroke. This engine produced 119.7 PS (88 kW; 118 HP) at 2,200 rpm of maximum output power.

The Valtra M120 is equipped with hydrostatic power steering, wet disc brakes, cabin with heat and air conditioning and 165.0 liters (43.6 US gal.; 36.3 Imp. gal) fuel tank.

Valtra M120 Specifications

General Specifications
ModelValtra M120
Length4,890 mm (192.5 in)
Width2,338 mm (92 in)
Height2,960 mm (116.5 in)
Wheel base2,560 mm (100.8 in)
Weight5,130 kg (11,310 lbs)
Fuel tank capacity165.0 liters (43.6 US gal.; 36.3 Imp. gal)
Cabin typeCabin with heat and air conditioning
Engine modelSisu 44EWA
Engine typeFour-stroke, liquid-cooled, inline
Fuel typeDiesel
Displacement4.4 L, 4,399 cm2, (268 cu·in)
Bore and stroke108.0 mm X 120.0 mm (4.25 in X 4.72 in)
Horsepower119.7 PS (88 kW; 118 HP) at 2,200 rpm
Torque500 N·m (51 kg·m, 368.5 ft·lb) at 1,400 rpm
Transmission and chassis
Chassis4×4 MFWD 4WD
Steering typeHydrostatic power
BrakesWet disc
Transmission model
Transmission typePowershift
Gears36 forward and 36 reverse
Front tiresAg: 14.9R28
Rear tiresAg: 18.4R38
Three-Point Hitch
Control type
Lift capacity7200 kg (15876 lbs)
PTO (Power take-off shaft)
Rear PTO type
Rear PTO spped540/1000 rpm
Hydraulic system
Hydraulic type
Pump flow24.1 gpm (91.2 lpm)
