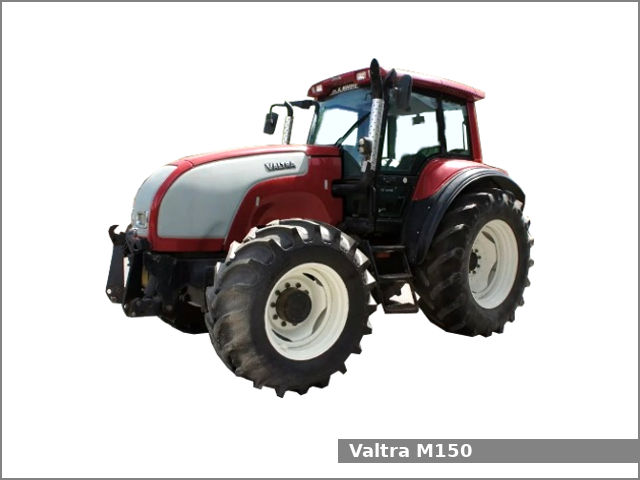

Valtra M150

Valtra M150The Valtra M150 is a 4WD utility tractor from the M series. This tractor was manufactured by the Valtra from 2003 to 2006. The Valtra M150 is equipped with 4.4 L four-cylinder diesel engine and semi-powershift transmission with 36 forward and 36 reverse gears.

The Valtra M150 utility tractor used the Sisu 44EWA engine. It is a 4.4 L, 4,399 cm2, (268 cu·in) four-cylinder turbocharged, intercooled diesel engine with 108.0 mm (4.25 in) of the cylinder bore and 120.0 mm (4.72 in) of the piston stroke. This engine produced 152 PS (111.8 kW; 150 HP) at 2,200 rpm of maximum output power and 580 N·m (59.1 kg·m, 427.5 ft·lb) at 1,400 rpm of peak torque.

The Valtra M150 is equipped with hydrostatic power steering, wet disc brakes, cabin with heat and air conditioning and 165.0 liters (43.6 US gal.; 36.3 Imp. gal) fuel tank.

Valtra M150 Specifications

General Specifications
Model Valtra M150
Length 4,890 mm (192.5 in)
Width 2,338 mm (92 in)
Height 2,960 mm (116.5 in)
Wheel base 2,560 mm (100.8 in)
Weight 5,450 kg (12,015 lbs)
Fuel tank capacity 165.0 liters (43.6 US gal.; 36.3 Imp. gal)
Battery 12V
Cabin type Cabin with heat and air conditioning
Engine model Sisu 44EWA
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 4.4 L, 4,399 cm2, (268 cu·in)
Bore and stroke 108.0 mm X 120.0 mm (4.25 in X 4.72 in)
Horsepower 152 PS (111.8 kW; 149.9 HP) at 2,200 rpm
Torque 580 N·m (59.1 kg·m, 427.5 ft·lb) at 1,400 rpm
Starter Electric
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes Wet disc
Transmission model
Transmission type Powershift
Gears 36 forward and 36 reverse
Front tires Ag: 14.9R28
Rear tires Ag: 18.4R38
Three-Point Hitch
Caterogy II
Control type
Lift capacity 7200 kg (15876 lbs)
PTO (Power take-off shaft)
Rear PTO type
Rear PTO spped 540/1000 rpm
Hydraulic system
Hydraulic type
Pump flow 24.1 gpm (91.0 lpm)
