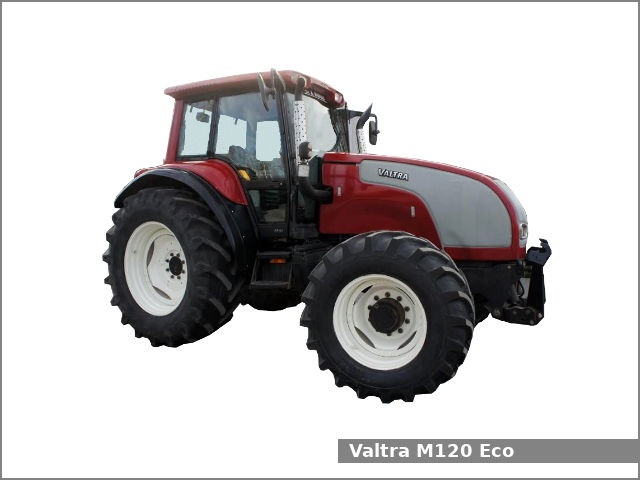

Valtra M120 Eco

Valtra M120 EcoThe Valtra M120 Eco is a 4WD utility tractor from the M series. This tractor was manufactured by the Valtra from 2003 to 2006. The Valtra M120 Eco is equipped with 4.4 L four-cylinder diesel engine and Powershift transmission with 36 forward and 36 reverse gears.

The Valtra M120 Eco farm tractor used the Sisu 44EWA engine. It is a 4.4 L, 4,399 cm2, (268.44 cu·in) four-cylinder turbocharged, intercooled diesel engine with 108.0 mm (4.25 in) of the cylinder bore and 120.0 mm (4.72 in) of the piston stroke. This engine produced 116.7 PS (85.8 kW; 115 HP) at 1,800 rpm of maximum output power and 580 N·m (59.1 kg·m, 427.5 ft·lb) at 1,200 rpm of peak torque.

The Valtra M120 Eco is equipped with hydrostatic power steering, wet disc brakes, cabin with heat and air conditioning and 165.0 liters (43.6 US gal.; 36.3 Imp. gal) fuel tank.

Valtra M120 Eco Specifications

General Specifications
ModelValtra M120 Eco
Length4,890 mm (192.5 in)
Width2,338 mm (92 in)
Height2,960 mm (116.5 in)
Wheel base2,560 mm (100.8 in)
Weight5,130 kg (11,310 lbs)
Fuel tank capacity165.0 liters (43.6 US gal.; 36.3 Imp. gal)
Cabin typeCabin with heat and air conditioning
Engine modelSisu 44EWA
Engine typeFour-stroke, liquid-cooled, inline
Fuel typeDiesel
Displacement4.4 L, 4,399 cm2, (268 cu·in)
Bore and stroke108.0 mm X 120.0 mm (4.25 in X 4.72 in)
Horsepower116.7 PS (85.8 kW; 115 HP) at 1,800 rpm
Torque580 N·m (59.1 kg·m, 427.5 ft·lb) at 1,200 rpm
Transmission and chassis
Chassis4×4 MFWD 4WD
Steering typeHydrostatic power
BrakesWet disc
Transmission model
Transmission typePowershift
Gears36 forward and 36 reverse
Front tiresAg: 14.9R28
Rear tiresAg: 18.4R38
Three-Point Hitch
Control type
Lift capacity7200 kg (15876 lbs)
PTO (Power take-off shaft)
Rear PTO type
Rear PTO spped540/1000 rpm
Hydraulic system
Hydraulic type
Pump flow21.7 gpm (82.0 lpm)
