Belarus 250AS

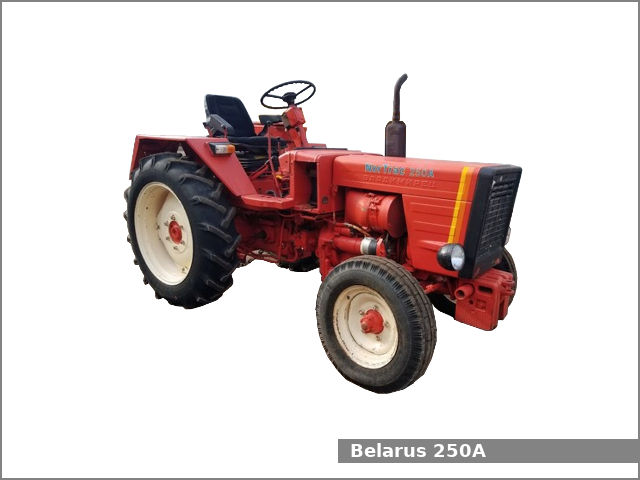

Belarus 250ASThe Belarus 250AS is a 2WD utility tractor manufactured by Minsk Tractor Factory (Belarus) in Minsk, Belarus from 1979 to 1987. The Belarus 250AS is equipped with a 2.1 L (127.0 cu·in) two-cylinder diesel engine and a sliding gear transmission with 8 forward and 6 reverse gears.

The Belarus 250AS utility tractor used the Belarus engine. It is a 2.1 L, 2,081 cm2, (127.0 cu·in) two-cylinder natural aspirated diesel engine with 105.0 mm (4.13 in) of the cylinder bore and 120.0 mm (4.72 in) of the piston stroke. The compression ratio rating is 16.5:1. This engine produced 31.4 PS (23.1 kW; 31.0 HP) at 1,800 rpm of output power.

The Belarus 250AS is equipped with mechanical or power (optional) steering, differential mechanical band brakes, an open operator station, and 53.0 liters (14 US gal.; 11.7 Imp. gal) fuel tank.

Belarus 250AS Specifications

General Specifications
Model Belarus 250AS
Length 3,250 mm (128 in)
Width 1,470 mm (57.9 in)
Height (hood) 1,190 mm (46.9 in)
Wheel base 1,750 mm (68.9 in)
Ground clearance 430 mm (16.9 in)
Weight (operating) 3,000 kg (6,614 lbs)
Fuel tank capacity 53.0 liters (14 US gal.; 11.7 Imp. gal)
Battery Two 6V, CCA 900A
Cabin type Open operator station with available ROPS
Engine
Engine model Belarus
Engine type Four-stroke, air-cooled, inline
Cylinders 2
Fuel type Diesel
Displacement 2.1 L, 2,081 cm2, (127.0 cu·in)
Bore and stroke 105.0 mm X 120.0 mm (4.13 in X 4.72 in)
Compression ratio 16.5:1
Horsepower 31.4 PS (23.1 kW; 31.0 HP) at 1,800 rpm
Starter Electric
Oil capacity: 7.0 L (7.4 US. qt, 6.2 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD
Steering type Mechanical or power (optional)
Brakes Differential mechanical band
Transmission model
Transmission type Sliding gear
Gears 8 forward and 6 reverse
Speed Forward: 21.0 kmh (13.1 mph) Reverse: 21.0 kmh (13.1 mph)
Transmission oil capacity 10.0 L (2.6 US. gal, 2.2 Imp. gal.)
Tires
Front tires Ag: 6.00-16
Rear tires Ag: 10-28
Three-Point Hitch
Category II
Control type
Lift capacity (at ends) 600 kg (1,320 lbs)
PTO (Power take-off shaft)
Rear PTO type Live
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Open center
Hydraulic capacity 7.6 L (2 US. gal, 1.7 Imp. gal.)
Pressure 2060 psi (142 bar)
Valves 1
Total flow 4.2 gpm (15.9 lpm)
