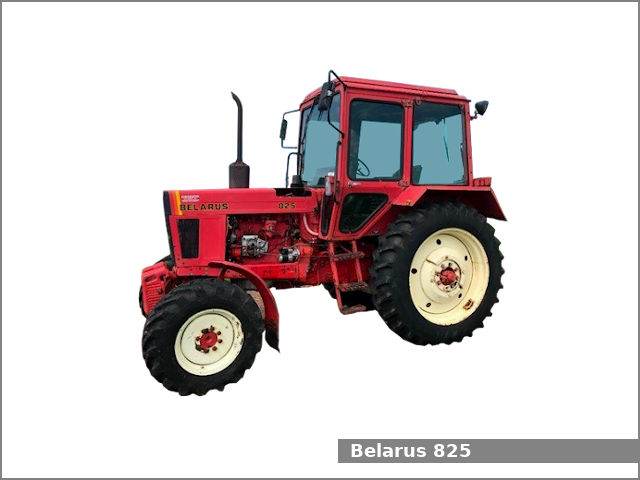

Belarus 825

Belarus 825The Belarus 825 is a 4WD utility tractor from the series. This tractor was manufactured by Minsk Tractor Factory (Belarus) in Minsk, Belarus from 1983 to 1996. The Belarus 825 is equipped with a 4.8 L (290.0 cu·in) four-cylinder diesel engine and a transmission with 18 forward and 4 reverse gears.

The Belarus 825 utility tractor used the Belarus D242 engine. It is a 4.8 L, 4,752 cm2, (290.0 cu·in) four-cylinder natural aspirated diesel engine with 110.0 mm (4.33 in) of the cylinder bore and 125.0 mm (4.92 in) of the piston stroke. This engine produced 82.1 PS (60.4 kW; 81.0 HP) at 2,200 rpm of output power.

The Belarus 825 is equipped with power steering, cab (standard), and 130.0 liters (34.3 US gal.; 28.6 Imp. gal) fuel tank.

Belarus 825 Specifications

General Specifications
Model Belarus 825
Length
Width
Height
Wheel base 2,450 mm (96.5 in)
Weight 4,130 kg (9,105 lbs)
Fuel tank capacity 130.0 liters (34.3 US gal.; 28.6 Imp. gal)
Battery
Cabin type Cab (standard)
Engine
Engine model Belarus D242
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 4.8 L, 4,752 cm2, (290.0 cu·in)
Bore and stroke 110.0 mm X 125.0 mm (4.33 in X 4.92 in)
Horsepower 82.1 PS (60.4 kW; 81.0 HP) at 2,200 rpm
Torque 268.5 N·m (27.4 kg·m, 197.9 ft·lb) at 1,000 rpm
Starter Electric
Coolant capacity: 19.9 L (21 US. qt, 17.5 Imp. qt.)
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Power
Brakes
Transmission model
Transmission type
Gears 18 forward and 4 reverse
Tires
Front tires Ag: 11.2-20
Rear tires Ag: 15.5-38
Three-Point Hitch
Category II
Control type
Lift capacity (at ends) 1,980 kg (4,365 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 540/1000 rpm
Hydraulic system
Hydraulic type Open center
Hydraulic capacity 20.4 L (5.4 US. gal, 4.5 Imp. gal.)
Valves 2
Pump flow 11.7 gpm (44.3 lpm)
