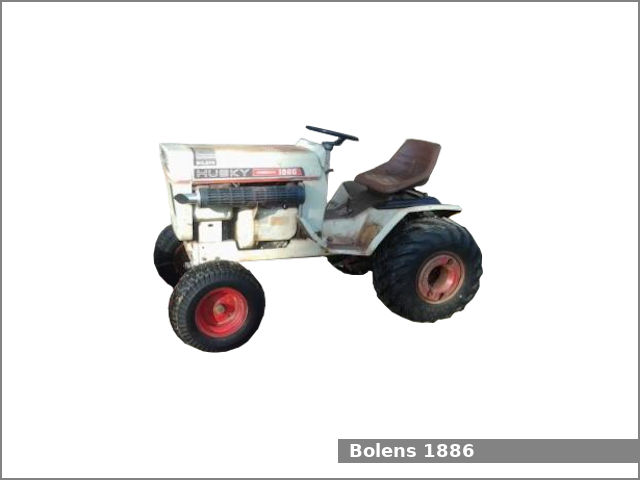

Bolens 1886

Bolens 1886The Bolens Husky 1886 is a 2WD garden tractor from the Large Frame series. This tractor was manufactured by Bolens from 1971 to 1972. The Bolens 1886 is equipped with a 0.8 L (47.7 cu·in) two-cylinder gasoline engine and a shaft-driven hydrostatic transmission with infinite forward and reverse gears.

The Bolens 1886 garden tractor used the Kohler K482S engine. It is a 0.8 L, 781 cm2, (47.7 cu·in) two-cylinder natural aspirated gasoline engine with 82.6 mm (3.25 in) of the cylinder bore and 73.0 mm (2.87 in) of the piston stroke. This engine produced 18.2 PS (13.4 kW; 18.0 HP) at 3,600 rpm of output power.

The Bolens 1886 is equipped with manual or power (optional) steering, disc brakes and an open operator station.

Following attachments are available for the Bolens 1886 garden tractor:

  • Mid-mount Bolens 1,210 mm (48 in) mower deck with 3-blades
  • Mid-mount Bolens 1,370 mm (54 in) mower deck with 3-blades
  • Front-mount Bolens 1,370 mm (54 in) blade
  • Front-mount Bolens 1,210 mm (48 in) dual-stage snowblower

Bolens 1886 Specifications

General Specifications
Model Bolens 1886
Length 1,930 mm (76.0 in)
Width 960 mm (37.8 in)
Height 1,140 mm (44.9 in)
Wheel base 1,320 mm (52.0 in)
Ground clearance 210 mm (8.3 in)
Weight
Fuel tank capacity
Battery 12V
Cabin type Open operator station
Engine
Engine model Kohler K482S
Engine type Four-stroke, air-cooled
Cylinders 2
Fuel type Gasoline
Displacement 0.8 L, 781 cm2, (47.7 cu·in)
Bore and stroke 82.6 mm X 73.0 mm (3.25 in X 2.87 in)
Horsepower 18.2 PS (13.4 kW; 18 HP) at 3,600 rpm
Starter Electric
Oil type SAE 10W-30
Oil capacity: 1.9 L (2 US. qt, 1.7 Imp. qt.)
Spark plug Champion HR10
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual or power (optional)
Brakes Disc
Transmission model Eaton 12
Transmission type Shaft-driven hydrostatic
Gears Infinite forward and reverse
Speed Forward: 12.9 kmh (8 mph) Reverse: 6.4 kmh (4 mph)
Transmission oil capacity 9.5 L (2.5 US. gal, 2.1 Imp. gal.)
Tires
Front tires Lawn/turf: 5.70/5.00×8
Rear tires Lawn/turf: 27×8.50-15
Three-Point Hitch
Category 0 (optional)
Control type
Lift capacity (at ends)
PTO (Power take-off shaft)
Middle PTO type Independent
Middle PTO speed
