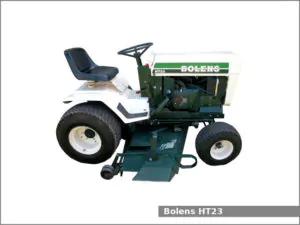

Bolens HT23

Bolens HT23The Bolens HT23 is a 2WD lawn and garden tractor from the Large Frame series. This tractor was manufactured by Bolens in Port Washington, Wisconsin, USA from 1979 to 1987. The Bolens HT23 is equipped with a 0.9 L (57.7 cu·in) two-cylinder gasoline engine and a shaft-driven hydrostatic transmission with infinite (2-range) forward and reverse gears.

The Bolens HT23 garden tractor used the Kohler K582 engine. It is a 0.9 L, 946 cm2, (57.7 cu·in) two-cylinder natural aspirated gasoline engine with 88.9 mm (3.5 in) of the cylinder bore and 76.2 mm (3.0 in) of the piston stroke. This engine produced 23.4 PS (17.2 kW; 23.0 HP) at 3,600 rpm of output power.

The Bolens HT23 is equipped with manual steering, an open operator station, and 18.9 liters (5 US gal.; 4.2 Imp. gal) fuel tank.

Following attachments are available for the Bolens HT23 garden tractor:

  • Mid-mount Bolens 1,210 mm (48 in) mower deck
  • Mid-mount Bolens 1,370 mm (54 in) mower deck

Bolens HT23 Specifications

General Specifications
Model Bolens HT23
Length 1,900 mm (74.8 in)
Width 1,160 mm (45.7 in)
Height 1,140 mm (44.9 in)
Wheel base 1,320 mm (52 in)
Ground clearance 210 mm (8.3 in)
Weight 498 kg (1,098 lbs)
Fuel tank capacity 18.9 liters (5 US gal.; 4.2 Imp. gal)
Battery 12V, 45Ah
Cabin type Open operator station
Engine
Engine model Kohler K582
Engine type Four-stroke, air-cooled, inline
Cylinders 2
Fuel type Gasoline
Displacement 0.9 L, 946 cm2, (57.7 cu·in)
Bore and stroke 88.9 mm X 76.2 mm (3.5 in X 3 in)
Horsepower 23.4 PS (17.2 kW; 23.0 HP) at 3,600 rpm
Starter Electric
Oil capacity: 7.6 L (8 US. qt, 6.7 Imp. qt.)
Spark plug Champion RH10
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual
Brakes
Transmission model Eaton 11
Transmission type Shaft-driven hydrostatic
Gears Infinite (2-range) forward and reverse
Speed Forward: 16.1 kmh (10 mph) Reverse: 8.0 (5 mph)
Transmission oil capacity 9.5 L (2.5 US. gal, 2.1 Imp. gal.)
Tires
Front tires Lawn/turf: 18-8.50×8
Rear tires Lawn/turf: 26-12.00×12
Three-Point Hitch
Category 0 (optional)
Control type
Lift capacity (at ends)
PTO (Power take-off shaft)
Front PTO type
Front PTO speed 2000 rpm
ATTENTION! Dear visitors, this site is not a trading platform, an official dealer or a spare parts supplier, so we do not have any price lists, spare parts catalogs, service or owner manuals. We are an information portal and provide the technical specifications.

We try to use verified sources and official documentation, however, differences between sources or errors in entering information may occur. In addition, the characteristics may vary depending on the modification and market. We do not provide advice on technical issues related to the any operation or repair. We do not recommend using provided information for repairing or spare parts ordering, use only official service manuals and spare-parts catalogs.
