Branson 3510

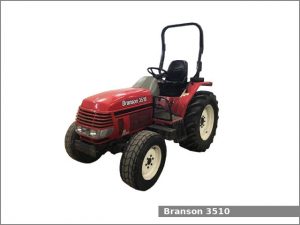

Branson 3510The Branson 3510 is a 4WD compact utility tractor from the 10 series. This tractor was manufactured by Branson in Yangsu-ri, South Korea from 2002 to 2005. The Branson 3510 is equipped with a 1.7 L (105.0 cu·in) three-cylinder diesel engine and a synchromesh transmission with 12 forward and 12 reverse gears.

The Branson 3510 compact utility tractor used the Kukje engine. It is a 1.7 L, 1,721 cm2, (105.0 cu·in) three-cylinder natural aspirated diesel engine with 88.0 mm (3.46 in) of the cylinder bore and 94.0 mm (3.7 in) of the piston stroke. The compression ratio rating is 21.3:1. This engine produced 35.5 PS (26.1 kW; 35.0 HP) at 2,600 rpm of output power.

The Branson 3510 is equipped with hydrostatic power steering, wet disc brakes, two-post ROPS, and 40.0 liters (10.6 US gal.; 8.8 Imp. gal) fuel tank.

Branson 3510 Specifications

General Specifications
Model Branson 3510
Length 3,040 mm (119.7 in)
Width 1,480 mm (58.3 in)
Height 2,410 mm (94.9 in)
Wheel base 1,650 mm (65 in)
Ground clearance 280 mm (11 in)
Weight 1,650 kg (3,638 lbs)
Fuel tank capacity 40.0 liters (10.6 US gal.; 8.8 Imp. gal)
Battery 12V
Cabin type Two-post ROPS. Canopy (optional)
Engine
Engine model Kukje
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 1.7 L, 1,721 cm2, (105.0 cu·in)
Bore and stroke 88.0 mm X 94.0 mm (3.46 in X 3.7 in)
Compression ratio 21.3:1
Horsepower 35.5 PS (26.1 kW; 35.0 HP) at 2,600 rpm
Starter Electric
Oil capacity: 6.1 L (6.4 US. qt, 5.4 Imp. qt.)
Coolant capacity: 9.3 L (9.8 US. qt, 8.2 Imp. qt.)
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes Wet disc
Differential lock Standard
Transmission model
Transmission type Synchromesh
Gears 12 forward and 12 reverse
Transmission oil capacity 35.0 L (9.2 US. gal, 7.7 Imp. gal.)
Tires
Front tires Ag: 7-16
Lawn/turf: 27×8.50-15
Rear tires Ag: 12.4-24
Lawn/turf: 41×14.00-20
Three-Point Hitch
Category I
Control type
Lift capacity 1,170 kg (2,580 lbs)
PTO (Power take-off shaft)
Rear PTO type Live with 2-stage clutch
Rear PTO speed 540/1000 rpm
Hydraulic system
Hydraulic type Open center
Hydraulic capacity 35.0 L (9.2 US. gal, 7.7 Imp. gal.)
Valves 0 to 2
Pump flow 8.9 gpm (33.7 lpm)
Total flow 13.2 gpm (50 lpm)
