Branson 2400H

Branson 2400H (2007-) tractor specifications: engine and transmission, dimensions and weight, fluid capacity and service data, tyres size, attachments

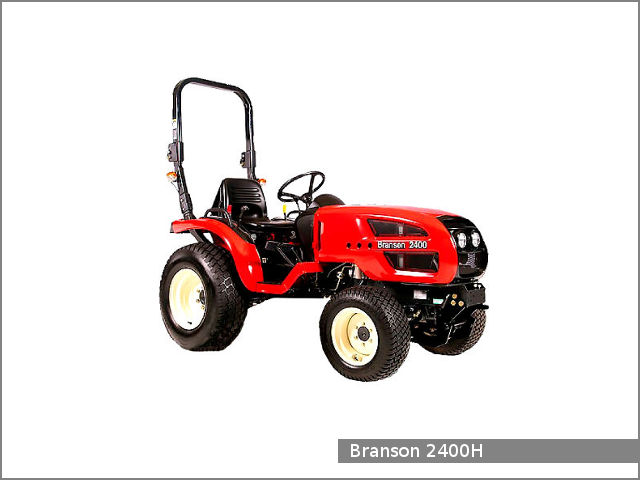

Branson 2400HThe Branson 2400H is a compact utility tractor, manufactured by South Korean company Kukje Machinery Company. This tractor is equipped with three-cylinders Kukje A1100N2 diesel engine the displacement of which is 1.2 L (1,175 cc, 71.7 cu-in) and two range hydrostatic transmission.

The Branson 2400H tractor used a three-cylinder naturally-aspirated liquid-cooled vertical diesel engine Kukje A1100N2 with 1,175 cc (71.7 cu-in) of displacement with swirl combustion chambers. The Kukje A1100N2 motor has 78.0 mm (3.07 in) of the cylinder bore and 82.0 mm (3.23 in) of the piston stroke. It produced 24.0 HP (17.6 kW) at 2,600 rpm of horsepower. The engine used a dry air cleaner with double filter elements.

The Branson 2400 hydro is equipped with a hydrostatic transmission (up to 12.1 mph, 19.5 kmh) and dry type, single stage clutch. The tractor used hydrostatic power steering, wet disc brakes, and rear 3-point hitch.

General Specifications

General Specifications
ModelBranson 2400H
Tractor typeСompact utility tractor
Production years2007-
ManufacturerKukje Machinery Company
FactoryYangsu-ri, South Korea
Dimensions and weight
Length (with 3-pt)3,055 mm (120.3 in.)
Width (min)1,124 mm (44.3 in.)
Height (with ROPS)2,216 mm (87.2 in.)
Wheelbase1,502 mm (59.1 in.)
Ground clearance307 mm (12.1 in.)
Weight830 kg (1,829 lb.)
Fluid capacity
Fuel tank capacity23.0 liters (6.1 US gal, 5.1 Imp. gal)
Oil capacity3.0 liters (3.2 US.qts, 2.6 Imp. qts)
Coolant capacity4.6 liters (4.9 US.qts, 4.0 Imp. qts)
Transmission oil capacity13.0 liters (13.7 US.qts, 11.4 Imp. qts)
Front axle oil capacity3.0 liters (3.2 US.qts, 2.6 Imp. qts)
Electrical system
Charging systemAlternator
Charging amps50 A
Cabin type
Cabin typeOpen operator station with two-post folding ROPS (Rollover protection structure)


Engine modelKukje A1100N2
Emissions standardTier 4
Displacement1.2 L, 1,175 cc (71.7
Bore x stroke78.0 x 82.0 mm (3.07 x 3.23 in)
Power output Gross: 24.5 PS (18.0 KW; 24.0 HP) at 2,800 rpm
At PTO-shaft: 21.4 PS (15.7 KW; 21.0 HP) at 2,8600 rpm
Torque65.0 Nm (6.6 kg·m; 48.0 lbf·ft)
Starter typeElectric starter
Oil type10W-40
Oil capacity3.0 liters (3.17 US.qts, 2.64 Imp. qts))
Coolant capacity4.6 liters (4.9 US.qts, 4.0 Imp. qts)

Transmission and chassis

Transmission and chassis
SteeringHydrostatic power type
BrakeWet, multi-disc
Differential LockStandard
Transmission typeHydrostatic/td>
Gears2 range forward and reverse
Ground speed Forward: to 19.5 kmh (12.1 mph)
Reverse: to 19.5 kmh (12.1 mph)
Transmission oil capacity10.0 liters (10.6 US.qts, 8.8 Imp. qts)
Front axle oil capacity3.0 liters (3.2 US.qts, 2.6 Imp. qts)


Tires size
Front tires6-12
Rear tires9.5-16

PTO and 3-point hitch

PTO (Power take-off shaft)
PTO Type:Rear, Live type PTO
PTO Speed:540 / 960 rpm
3-point hitch
3-point linkage:Category I
Control system:Position
No. of remote valves:Up to 2 (optional)
Max lifting capacity (at link end):680 kg (1,499 lbs)

Hydraulic system

Hydraulic system
TypeDual pump
Pump flow18.2 lpm (4.8 gpm)
Total flow31.0 lpm (8.2 gpm)
Steering flow12.9 lpm (3.4 gpm)


Branson SL00 Loader
Height (at pin)2,220 mm (87.6 in)
Lift (full at pin)480 kg (1,060 lbs)
Breakout843 kg (1,840 lbs)
Dump angle53°
Rollback angle (ground line)33°
Dump reach800 mm (31.5 in)
Ground reach1,490 mm (59.0 in)
Dump clearance2,130 mm (84.2 in)
Bucket width1,270 mm (50.0 in)
