Power King 1218HV

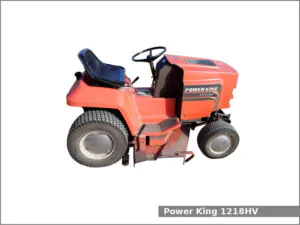

Power King 1218HVThe Power King 1218HV is a 2WD garden tractor from the 1200 series. This tractor was manufactured by Power King in Beaver Dam, Wisconsin, USA from 1994 to 1999. The Power King 1218HV is equipped with a 0.6 L (38.1 cu·in) two-cylinder gasoline engine and a shaft-driven hydrostatic transmission with infinite forward and reverse (2-range) gears.

The Power King 1218HV garden tractor used the Kohler CH18 engine. It is a 0.6 L, 624 cm2, (38.1 cu·in) two-cylinder natural aspirated gasoline engine with 77.0 mm (3.03 in) of the cylinder bore and 67.0 mm (2.64 in) of the piston stroke. The compression ratio rating is 8.5:1. This engine produced 18.2 PS (13.4 kW; 18 HP) at 3,600 rpm of output power.

The Power King 1218HV is equipped with manual steering, disc brakes, open operator station and 18.9 liters (5 US gal.; 4.2 Imp. gal) fuel tank.

Following attachments are available for the Power King 1218HV garden tractor:

  • Mid-mount Power King: 48 in (1,210 mm) mower deck with hydraulic lift
  • Mid-mount Power King: 60 in (1,520 mm) mower deck with hydraulic lift
  • Front-mount Power King: 48 in (1,060 mm) blade
  • Front-mount Power King: 54 in (1,370 mm) blade
  • Front-mount Power King: 48 in (1,210 mm) single-stage snowblower
  • Front-mount Power King: 47 in (1,190 mm) two-stage snowblower

Power King 1218HV Specifications

General Specifications
ModelPower King 1218HV
Length1,720 mm (67.7 in)
Width1,010 mm (39.8 in)
Height (steering wheel)1,090 mm (42.9 in)
Wheel base1,210 mm (47.6 in)
Ground clearance210 mm (8.3 in)
Weight381 kg (840 lbs)
Fuel tank capacity18.9 liters (5 US gal.; 4.2 Imp. gal)
Battery12V, CCA 300A
Cabin typeOpen operator station
Engine modelKohler CH18
Engine typeFour-stroke, air-cooled, V
Fuel typeGasoline
Displacement0.6 L, 624 cm2, (38.1 cu·in)
Bore and stroke77.0 mm X 67.0 mm (3.03 in X 2.64 in)
Compression ratio8.5:1
Horsepower18.2 PS (13.4 kW; 18 HP) at 3,600 rpm
Oil typeSAE 10W-30
Oil capacity:1.9 L (2 US. qt, 1.7 Imp. qt.)
Spark plugChampion RC12YC
Transmission and chassis
Steering typeManual
BrakesDisc brakes
Transmission model
Transmission typeShaft-driven hydrostatic
GearsInfinite forward and reverse (2-range)
Speed Forward: 14.3 kmh (8.9 mph) Reverse: 6.9 kmh (4.3 mph)
Front tires Ag: 21.2/4.0×12
Lawn/turf: 16/6.5×8
Rear tires Ag: 31.8/8.0×16
Lawn/turf: 23×10.5-12
PTO (Power take-off shaft)
Front PTO typeIndependent with electro-magnetic clutch
Front PTO speed
Rear PTO typeIndependent (optional)
Rear PTO speed2000 rpm
