Power King 1214

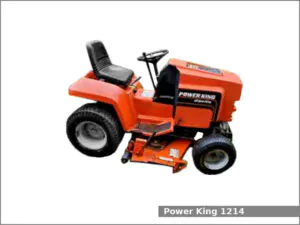

Power King 1214The Power King 1214 is a 2WD garden tractor from the 1200 series. This tractor was manufactured by Power King (a part of Engineering Products Company) in Beaver Dam, Wisconsin, USA from 1988 to 1993. The Power King 1214 is equipped with a 0.5 L (31.2 cu·in) single-cylinder gasoline engine and a shaft-driven hydrostatic transmission with infinite forward and reverse (2-range) gears.

The Power King 1214 garden tractor used the Kohler Magnum M14 engine. It is a 0.5 L, 512 cm2, (31.2 cu·in) single-cylinder natural aspirated gasoline engine with 88.9 mm (3.5 in) of the cylinder bore and 82.6 mm (3.25 in) of the piston stroke. The compression ratio rating is 7.0:1. This engine produced 14.3 PS (10.5 kW; 14.0 HP) at 3,600 rpm of output power.

The Power King 1214 is equipped with manual steering, disc brakes, open operator station and 18.9 liters (5.0 US gal.; 4.2 Imp. gal) fuel tank.

Following attachments are available for the Power King 1214 garden tractor:

  • Mid-mount Power King: 42 in (1,060 mm) mower deck with 3-blade, right-discharge and hydraulic lift
    • Cutting width: 1,060 mm (42.0 in)
    • Cut height: 30-110 mm (1.5-4.5 in)
  • Mid-mount Power King: 48 in (1,210 mm) mower deck with 3-blade, right-discharge and hydraulic lift
    • Cutting width: 1,210 mm (48.0 in)
    • Cut height: 30-110 mm (1.5-4.5 in)
  • Front-mount Power King: 48 in (1,060 mm) blade
  • Front-mount Power King: 54 in (1,370 mm) blade
  • Front-mount Power King: 47 in (1,190 mm) two-stage snowblower

Power King 1214 Specifications

General Specifications
ModelPower King 1214
Length1,720 mm (67.7 in)
Width1,040 mm (40.9 in)
Height (steering wheel)1,060 mm (41.7 in)
Wheel base210 mm (8.3 in)
Ground clearance1,210 mm (47.6 in)
Weight309 kg (681 lbs)
Fuel tank capacity18.9 liters (5 US gal.; 4.2 Imp. gal)
Battery12V, 48Ah
Cabin typeOpen operator station
Engine modelKohler Magnum M14
Engine typeFour-stroke, air-cooled, L-head
Fuel typeGasoline
Displacement0.5 L, 512 cm2, (31.2 cu·in)
Bore and stroke88.9 mm X 82.6 mm (3.5 in X 3.25 in)
Compression ratio7.0:1
Horsepower14.3 PS (10.5 kW; 14.0 HP) at 3,600 rpm
StarterElectric 12V
Oil type API SF or SG;
SAE 30W, 5W-20, 5W-30
Oil capacity:1.9 L (2 US. qt, 1.7 Imp. qt.)
Spark plugChampion RH10
Spark plug gap:0.65 mm (0.0256 in)
Valve clearance
Intake valve clearance:0.20-0.25 mm (0.0079-0.0098 in)
Exhaust valve clearance:0.43-0.48 mm (0.0169-0.0189 in)
Transmission and chassis
Chassis4×2 2WD
Steering typeManual
BrakesDisc brakes
Transmission model
Transmission typeShaft-driven hydrostatic
GearsInfinite forward and reverse (2-range)
Speed Forward: 12.1 kmh (7.5 mph) Reverse: 6.9 kmh (4.3 mph)
Front tires Lawn/turf: 16×6.50-8
Rear tires Lawn/turf: 23×10.50-12
Three-Point Hitch
CategorySleeve hitch (optional)
Control type
Lift capacity (at ends)
PTO (Power take-off shaft)
Front PTO typeIndependent with electro-magnetic clutch
Front PTO speed
Rear PTO typeIndependent (optional)
Rear PTO speed2000 rpm
ATTENTION! Dear visitors, this site is not a trading platform, an official dealer or a spare parts supplier, so we do not have any price lists, spare parts catalogs, service or owner manuals. We are an information portal and provide the technical specifications.

We try to use verified sources and official documentation, however, differences between sources or errors in entering information may occur. In addition, the characteristics may vary depending on the modification and market. We do not provide advice on technical issues related to the any operation or repair. We do not recommend using provided information for repairing or spare parts ordering, use only official service manuals and spare-parts catalogs.
