Branson 3520H

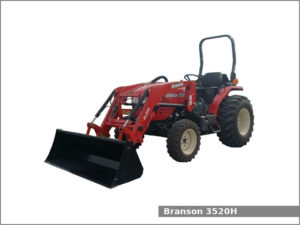

Branson 3520HThe Branson 3520H is a 4WD compact utility tractor manufactured by Branson since 2014. The Branson 3520H is equipped with a 1.7 L (104.6 cu·in) three-cylinder diesel engine and a hydrostatic transmission with infinite (3-range) forward and reverse gears.

The Branson 3520H compact utility tractor used the Kukje A1700N2 engine. It is a 1.7 L, 1,714 cm2, (104.6 cu·in) three-cylinder natural aspirated diesel engine with 88.0 mm (3.46 in) of the cylinder bore and 94.0 mm (3.7 in) of the piston stroke. This engine produced 35.5 PS (26.1 kW; 35.0 HP) at 2,600 rpm of output power.

The Branson 3520H is equipped with power steering, two-post foldable ROPS, and 35.2 liters (9.3 US gal.; 7.7 Imp. gal) fuel tank.

Following attachments are available for the Branson 3520H compact utility tractor:

  • Branson BL25R loader
  • Branson BH760 backhoe
  • Branson BH860 backhoe
  • Branson K710 backhoe

Branson 3520H Specifications

General Specifications
Model Branson 3520H
Length 3,300 mm (129.9 in)
Width 1,620 mm (63.8 in)
Height (ROPS) 2,480 mm (97.6 in)
Wheel base 1,800 mm (70.9 in)
Ground clearance 320 mm (12.6 in)
Weight 1,840 kg (4,060 lbs)
Fuel tank capacity 35.2 liters (9.3 US gal.; 7.7 Imp. gal)
Battery 12V
Cabin type Two-post foldable ROPS
Engine
Engine model Kukje A1700N2
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 1.7 L, 1,714 cm2, (104.6 cu·in)
Bore and stroke 88.0 mm X 94.0 mm (3.46 in X 3.7 in)
Horsepower 35.5 PS (26.1 kW; 35.0 HP) at 2,600 rpm
Starter Electric
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Power
Brakes
Transmission model
Transmission type Hydrostatic
Gears Infinite (3-range) forward and reverse
Speed Forward: 23.8 kmh (14.8 mph) Reverse: 22.8 kmh (14.2 mph)
Tires
Front tires Ag: 7.5×16
Lawn/turf: 10×16.5
Rear tires Ag: 12.4×28
Lawn/turf: 420/70×24
Three-Point Hitch
Category I
Control type Position control
Lift capacity (at ends) 1,500 kg (3,310 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 540/790 rpm
Hydraulic system
Hydraulic type
Pump flow 8.9 gpm (33.7 lpm)
Steering flow 4.8 gpm (18.2 lpm)
Total flow 13.7 gpm (51.9 lpm)
