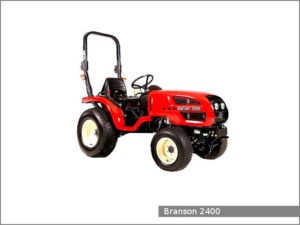

Branson 2400

Branson 2400 (2007-) compact utility tractor specifications and reviews

Branson 2400The Branson 2400 is a 2WD/4WD compact utility tractor, manufactured by South Korean company Kukje Machinery Company on the factory in Yangsu-ri, South Korea since 2007. This tractor is equipped with three-cylinders Kukje A1100N2 diesel engine the displacement of which is 1.2 L (1,175 cc, 71.7 cu-in) and gear shift transmission with 6 forward and 2 reverse gears.

The Branson 2400 utility tractor used a three-cylinder naturally-aspirated liquid-cooled vertical diesel engine Kukje A1100N2 with 1,175 cc (71.7 cu-in) of displacement with swirl chambers. The Kukje A1100N2 motor has 78.0 mm (3.07 in) of the cylinder bore and 82.0 mm (3.23 in) of the piston stroke. It produced 24.5 PS (18.0 KW; 24.0 HP) at 2,800 rpm of gorss horsepower and 65.0 Nm (6.6 kg·m; 48.0 lbf·ft) of peak torque. The engine used a dry air cleaner with double filter elements.

The Branson 2400 is equipped with gear shift transmission and dry type, single stage clutch. The transmission has 6 forward and 2 reverse gears. The tractor used hydrostatic power steering, wet disc brakes and open operator station with two-post folding ROPS.

General Specifications

General Specifications
ModelBranson 2400
Tractor typeСompact utility tractor
Production years2007-
ManufacturerKukje Machinery Company
FactoryYangsu-ri, South Korea
Dimensions and weight
Length (with 3-pt)3,055 mm (120.3 in.)
Width (min)1,124 mm (44.3 in.)
Height (with ROPS)2,216 mm (87.2 in.)
Wheelbase1,502 mm (59.1 in.)
Ground clearance307 mm (12.1 in.)
Weight819 kg (1,805 lb.)
Fluid capacity
Fuel tank capacity23.0 liters (6.1 US gal, 5.1 Imp. gal)
Oil capacity3.0 liters (3.2 US.qts, 2.6 Imp. qts)
Coolant capacity4.6 liters (4.9 US.qts, 4.0 Imp. qts)
Transmission oil capacity13.0 liters (13.7 US.qts, 11.4 Imp. qts)
Front axle oil capacity3.0 liters (3.2 US.qts, 2.6 Imp. qts)
Electrical system
GroundNegative
Charging systemAlternator
Charging amps50 A
Battery12V
Cabin type
Cabin typeOpen operator station with two-post folding ROPS (Rollover protection structure)

Engine

Engine
Engine modelKukje A1100N2
FuelDiesel
Emissions standardTier 4
Displacement1.2 L, 1,175 cc (71.7 cu.in.)
Bore x stroke78.0 x 82.0 mm (3.07 x 3.23 in)
Power output Gross: 24.5 PS (18.0 KW; 24.0 HP) at 2,800 rpm
At PTO-shaft: 21.4 PS (15.7 KW; 21.0 HP) at 2,8600 rpm
Torque65.0 Nm (6.6 kg·m; 48.0 lbf·ft)
Starter typeElectric starter
Oil type10W-40
Oil capacity3.0 liters (3.17 US.qts, 2.64 Imp. qts))
Coolant capacity4.6 liters (4.9 US.qts, 4.0 Imp. qts)

Transmission and chassis

Transmission and chassis
Chassis2WD/4WD
SteeringHydrostatic power type
BrakeWet, multi-disc
Differential LockStandard
Transmission typeSliding mesh with dry single plate clutch
Gears6 forward and 2 reverse
Ground speed Forward: 0.9-16.0 km/h (0.6-9.94 mph)
Reverse: 1.2-6.3 km/h (0.75-3.9 mph)
Transmission oil capacity11.0 liters (11.6 US.qts, 9.7 Imp. qts)
Front axle oil capacity3.0 liters (3.2 US.qts, 2.6 Imp. qts)

Tires

Tires size
Front tires6-12
Rear tires9.5-16

PTO and 3-point hitch

PTO (Power take-off shaft)
PTO Type:Rear, Live type PTO
PTO Speed:540 / 960 rpm
3-point hitch
3-point linkage:Category I
Control system:
No. of remote valves:
Max lifting capacity (at link end):680 kg (1,499 lbs)

Hydraulic system

Hydraulic system
TypeDual pump
Pump flow18.2 lpm (4.8 gpm)
Total flow31.0 lpm (8.2 gpm)
Steering flow12.9 lpm (3.4 gpm)

Attachments

Branson SL00 Loader
Height (at pin)2,220 mm (87.6 in)
Lift (full at pin)480 kg (1,060 lbs)
Breakout843 kg (1,840 lbs)
Dump angle53°
Rollback angle (ground line)33°
Dump reach800 mm (31.5 in)
Ground reach1,490 mm (59.0 in)
Dump clearance2,130 mm (84.2 in)
Bucket width1,270 mm (50.0 in)
