Craftsman CTX9500

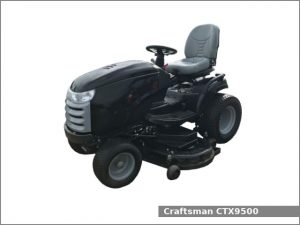

Craftsman CTX9500The Craftsman CTX9500 is a 2WD garden tractor from the CTX series. This tractor was manufactured by Simplicity for distributor Craftsman during 2012.

The Craftsman CTX9500 is equipped with one of two engines: a 0.7 L (44.2 cu·in) two-cylinder gasoline engine or a 0.8 L (49.4 cu·in) two-cylinder gasoline engine and a belt-driven hydrostatic transmission with infinite forward and reverse gears.

The tractor could be equipped with the following engines:

  • Briggs & Stratton 44P777. It is a 0.7 L, 724 cm2, (44.2 cu·in) two-cylinder natural aspirated gasoline engine with 79.24 mm (3.12 in) of the cylinder bore and 73.41 mm (2.89 in) of the piston stroke. This engine produced 26.4 PS (19.4 kW; 26 HP) at 3,600 rpm of output power.
  • Briggs & Stratton 49M877. It is a 0.8 L, 810 cm2, (49.4 cu·in) two-cylinder natural aspirated gasoline engine. The cylinder bore is 83.81 mm (3.3 in) and the piston stroke is 73.41 mm (2.89 in). This engine produced 30.5 PS (22.4 kW; 30 HP) at 3,600 rpm of output power.

The Craftsman CTX9500 is equipped with manual or power steering, open operator station and 13.6 liters (3.6 US gal.; 3 Imp. gal) fuel tank.

The Craftsman CTX9000 variants:

  • 107.25006: the Briggs & Stratton 44P777 engine, Tuff Torq K66 hydrostatic transmission and 52 inches (1,320 mm) mower deck with 3-blade and manual lift
  • 107.25007: the Briggs & Stratton 49M877 engine, Tuff Torq K71 hydrostatic transmission and 54 inches (1,370 mm) mower deck with 3-blade and hydraulic lift

Craftsman CTX9500 Specifications

General Specifications
Model Craftsman CTX9500
Length 107.25006: 1,905 mm (75.0 in)
107.25007: 2,300 mm (90.6 in)
Width 1,549 mm (61 in)
Height 1,194 mm (47 in)
107.25007: 1,320 mm (52 in)
Wheel base
Weight 107.25007: 532 kg (1,173 lbs)
Fuel tank capacity 13.6 liters (3.6 US gal.; 3 Imp. gal)
Battery 107.25006: 12V, CCA 340
107.25007: 12V, CCA 500
Cabin type Open operator station
Engine
Engine model Briggs & Stratton 44P777
Engine type Four-stroke, air-cooled, V
Cylinders 2
Fuel type Gasoline
Displacement 0.7 L, 724 cm2, (44.2 cu·in)
Bore and stroke 79.24 mm X 73.41 mm (3.12 in X 2.89 in)
Horsepower 26.4 PS (19.4 kW; 26 HP) at 3,600 rpm
Starter Electric
Oil capacity 1.9 liters (2.01 US.qts, 1.67 Imp. qts)
Engine
Engine model Briggs & Stratton 49M877
Engine type Four-stroke, air-cooled, V
Cylinders 2
Fuel type Gasoline
Displacement 0.8 L, 810 cm2, (49.4 cu·in)
Bore and stroke 83.81 mm X 73.41 mm (3.3 in X 2.89 in)
Horsepower 30.5 PS (22.4 kW; 30 HP) at 3,600 rpm
Starter Electric
Oil capacity 2.0 liters (2.11 US.qts, 1.76 Imp. qts)
Transmission and chassis
Chassis 4×2 2WD
Steering type 107.25006: Manual
107.25007: Power
Brakes
Differential lock 107.25007: Mechanical rear
Transmission model Tuff Torq K66
Transmission type Belt-driven hydrostatic
Gears Infinite forward and reverse
Speed Forward: 9.8 kmh (6.1 mph) Reverse: 4.8 kmh (3.0 mph)
Transmission oil capacity 2.5 L (0.7 US. gal, 0.5 Imp. gal.)
Transmission model Tuff Torq K71
Transmission type Belt-driven hydrostatic
Gears Infinite forward and reverse
Speed Forward: 12.9 kmh (8 mph) Reverse: 4.8 kmh (3.0 mph)
Tires
Front tires Lawn/turf: 16×6.5-8
Rear tires Lawn/turf:
107.25006: 23×10.5-12
107.25007: 24×12-12
PTO (Power take-off shaft)
Middle PTO type Independent with electric clutch
Middle PTO speed
