Craftsman DGS6500

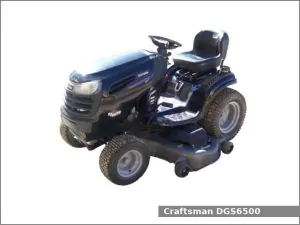

DGS6500The Craftsman DGS6500 is a 2WD garden tractor from the DGS series. This tractor was manufactured by AYP for distributor Craftsman (a part of Sears) during 2008. The Craftsman DGS6500 is equipped with a 0.7 L (44.2 cu·in) two-cylinder gasoline engine and a gear type transmission with 6 forward and 1 reverse gears or belt-driven hydrostatic transmission with infinite forward and reverse gears.

The Craftsman garden tractor used the Kohler SV735 engine. It is a 0.7 L, 725 cm2, (44.2 cu·in) V-twin natural aspirated gasoline engine with 83.0 mm (3.27 in) of the cylinder bore and 67.0 mm (2.64 in) of the piston stroke. The compression ratio rating is 9.0:1. This engine produced 26.4 PS (19.4 kW; 26.0 HP) at 3,600 rpm of output power.

The Craftsman DGS6500 is equipped with manual sector and pinion steering, mechanical disc brakes, open operator station and 15.1 liters (4 US gal.; 3.3 Imp. gal) fuel tank and mid-mount Craftsman 54 inches (1,370 mm) or 48 inches (1,210 mm) mower deck with 3-blade and manual lift.

The Craftsman DGS6500 variants:

  • 917.28845 (917.28645 California emissions) the Kohler SV735 engine, the Peerless P820-040 gear type transmission and 54 inches mower deck
  • 917.28846 (917.28646 California emissions) the Kohler SV735 engine, the Tuff Torq K-66 hydrostatic transmission and 54 inches mower deck
  • 917.28848 the Kohler SV735 engine, the Tuff Torq K-66 hydrostatic transmission and 48 inches mower deck
  • 917.28848 the Kohler SV735 engine, the Tuff Torq K-66Y hydrostatic transmission and 54 inches mower deck

Craftsman DGS6500 Specifications

General Specifications
Model Craftsman DGS6500
Length –
Width –
Height –
Wheel base –
Weight 267 kg (589 lbs)
Fuel tank capacity 15.1 liters (4 US gal.; 3.3 Imp. gal)
Battery 12V, CCA 280A, Group U1R
Cabin type Open operator station
Engine
Engine model Kohler SV735
Engine type Four-stroke, air-cooled, V-twin
Cylinders 2
Fuel type Gasoline
Displacement 0.7 L, 725 cm2, (44.2 cu·in)
Bore and stroke 83.0 mm X 67.0 mm (3.27 in X 2.64 in)
Compression ratio 9.0:1
Horsepower 26.4 PS (19.4 kW; 26.0 HP) at 3,600 rpm
Starter Electric
Oil capacity: 1.8 L (1.9 US. qt, 1.6 Imp. qt.)
Spark plug Champion RC12YC
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual sector and pinion
Brakes Mechanical disc
Transmission model Peerless P820-040
Transmission type Gear type
Gears 6 forward and 1 reverse
Speed Forward: 7.0 kmh (4.4 mph) Reverse: 2.1 kmh (1.3 mph)
Transmission model Tuff Torq K-66
Transmission type Belt-driven hydrostatic
Gears Infinite forward and reverse
Speed Forward: 9.3 kmh (5.8 mph) Reverse: 3.4 kmh (2.1 mph)
Transmission model Tuff Torq K-66Y
Transmission type Belt-driven hydrostatic
Gears Infinite forward and reverse
Speed Forward: 9.3 kmh (5.8 mph) Reverse: 3.4 kmh (2.1 mph)
Tires
Front tires Lawn/turf: 16×6.5×6
Rear tires Lawn/turf: 23×10.5×8
