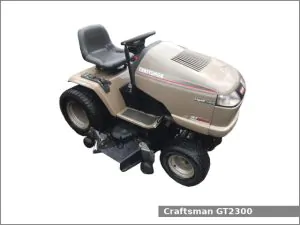

Craftsman GT2300The Craftsman GT2300 (917.27344) is a 2WD garden tractor from the GT series. This tractor was manufactured by AYP for distributor Craftsman (a part of Sears) from 2001 to 2002. The Craftsman GT2300 is equipped with a 0.7 L (41.1 cu·in) V-Twin gasoline engine and a belt-driven hydrostatic transmission with infinite forward and reverse gears.

The Craftsman GT2300 garden tractor used the Kohler LV675 engine. It is a 0.7 L, 673 cm2, (41.1 cu·in) two-cylinder natural aspirated gasoline engine with 80.0 mm (3.15 in) of the cylinder bore and 67.0 mm (2.64 in) of the piston stroke. The compression ratio rating is 8.5:1. This engine produced 23.4 PS (17.2 kW; 23.0 HP) at 3,600 rpm of output power.

The Craftsman GT2300 is equipped with manual steering, open operator station and mid-mount Craftsman 50 in (1,270 mm) mower deck with 3-blades.

Craftsman GT2300 Specifications

General Specifications
ModelCraftsman GT2300 (917.27344)
Wheel base
Fuel tank capacity
Cabin typeOpen operator station
Engine modelKohler LV675
Engine typeFour-stroke, liquid-cooled, V-Twin
Fuel typeGasoline
Displacement0.7 L, 673 cm2, (41.1 cu·in)
Bore and stroke80.0 mm X 67.0 mm (3.15 in X 2.64 in)
Compression ratio8.5:1
Horsepower23.4 PS (17.2 kW; 23.0 HP) at 3,600 rpm
Torque44.0 N·m (4.5 kg·m, 32.4 ft·lb) at 2,400 rpm
Oil typeSAE 10W-30
Oil capacity:1.9 L (2 US. qt, 1.7 Imp. qt.)
Coolant capacity:1.4 L (1.5 US. qt, 1.2 Imp. qt.)
Spark plugChampion RC14YC
Transmission and chassis
Steering typeManual
Transmission modelHydro-Gear
Transmission typeBelt-driven hydrostatic
GearsInfinite forward and reverse
Front tires Lawn/turf: 16×7.5-8
Rear tires Lawn/turf: 24×12-12
PTO (Power take-off shaft)
Middle PTO typeIndependent with electric clutch
Middle PTO speed
