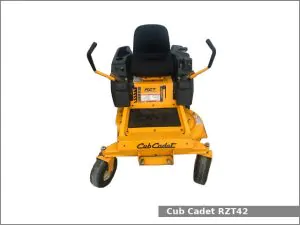

Cub Cadet RZT 42 (2006-2012)

Cub Cadet RZT 42 (2006-2012)The Cub Cadet RZT 42 is a 2WD zero-turn mower from the RZT series. This tractor was manufactured by Cub Cadet (a part of MTD) from 2005 to 2012.

This version with Kohles engine was manufactured from 2006 to 2012. The Cub Cadet RZT 42 is equipped with the Kohler gasoline engine and a hydrostatic transmission with infinite forward and reverse gears.

The Cub Cadet RZT 42 used differential power steering, open operator station and 11.4 liters (3.0 US gal.; 2.5 Imp. gal) fuel tank and and mid-mount Cub Cadet 42 inch (1,060 mm) mower deck with 2-blade.

The tractor could be equipped with the following engines:

  • Kohler SV530 (2006-2007). It is a 0.6 L, 596 cm2, (36.4 cu·in) single-cylinder natural aspirated gasoline engine with 94.0 mm (3.7 in) of the cylinder bore and 86.0 mm (3.39 in) of the piston stroke. This engine produced 17.3 PS (12.7 kW; 17.0 HP) at 3,600 rpm of output power.
  • Kohler SV600 (2008-2010). It is a 0.6 L, 596 cm2, (36.4 cu·in) single-cylinder natural aspirated gasoline engine. The cylinder bore is 94.0 mm (3.7 in) and the piston stroke is 86.0 mm (3.39 in). This engine produced 20.3 PS (14.9 kW; 20.0 HP) at 3,600 rpm of output power.
  • Kohler SV715 (2011-2012). It is a 0.7 L, 725 cm2, (44.2 cu·in) V-twin natural aspirated gasoline engine. The cylinder bore is 83.0 mm (3.27 in) and the piston stroke is 67.0 mm (2.64 in). This engine produced 22.3 PS (16.4 KW; 22.0 HP) at 3,600 rpm of output power.

Cub Cadet RZT 42 Specifications

General Specifications
Model Cub Cadet RZT 42
Length 1,700 mm (66.9 in)
Width
Height
Wheel base 1,100 mm (43.3 in)
Weight 217 kg (478 lbs)
Fuel tank capacity 11.4 liters (3 US gal.; 2.5 Imp. gal)
Battery 12V
Cabin type Open operator station
Engine
Engine model Kohler SV530 (2006-2007)
Engine type Four-stroke, air-cooled
Cylinders 1
Fuel type Gasoline
Displacement 0.6 L, 596 cm2, (36.4 cu·in)
Bore and stroke 94.0 mm X 86.0 mm (3.7 in X 3.39 in)
Horsepower 17.3 PS (12.7 kW; 17.0 HP) at 3,600 rpm
Starter Electric
Oil capacity: 1.5 L (1.6 US. qt, 1.3 Imp. qt.)
Engine
Engine model Kohler SV600 (2008-2010)
Engine type Four-stroke, air-cooled
Cylinders 1
Fuel type Gasoline
Displacement 0.6 L, 596 cm2, (36.4 cu·in)
Bore and stroke 94.0 mm X 86.0 mm (3.7 in X 3.39 in)
Horsepower 20.3 PS (14.9 kW; 20 HP) at 3,600 rpm
Starter Electric
Engine
Engine model Kohler SV715 (2011-2012)
Engine type Four-stroke, air-cooled
Cylinders 2
Fuel type Gasoline
Displacement 0.7 L, 725 cm2, (44.2 cu·in)
Bore and stroke 83.0 mm X 67.0 mm (3.27 in X 2.64 in)
Horsepower 22.3 PS (16.4 KW; 22.0 HP) at 3,600 rpm
Starter Electric
Transmission and chassis
Chassis 4×2 2WD
Steering type Differential power
Brakes
Transmission model Hydro-Gear EZT
Transmission type Hydrostatic
Gears Infinite forward and reverse
Tires
Front tires Lawn/turf: 11x4x5
Rear tires Lawn/turf: 18×6.5×8
PTO (Power take-off shaft)
Middle PTO type Independent with electric clutch
Middle PTO speed
