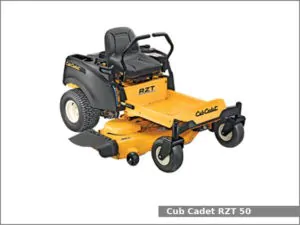

The Cub Cadet RZT 50 is a 2WD zero-turn mower from the RZT series. This tractor was manufactured by the Cub Cadet (a part of MTD) during 2005. The Cub Cadet RZT 50 is equipped with a 0.7 L V-twin gasoline engine and hydrostatic transmission with infinite forward and reverse gears.
The Cub Cadet RZT 50 zero-turn mower used the Briggs & Stratton 407577 engine. It is a 0.7 L, 656 cm2, (40.0 cu·in) V-twin natural aspirated gasoline engine with 75.0 mm (2.95 in) of the cylinder bore and 73.0 mm (2.87 in) of the piston stroke. This engine produced 22.3 PS (16.4 kW; 22.0 HP) of maximum output power.
The Cub Cadet RZT 50 is equipped with differential power steering, open operator station and 11.5 liters (3 US gal.; 2.5 Imp. gal) fuel tank. The Cub Cadet RZT 50 used mid-mount Cub Cadet 50 in (1,270 mm) mower deck with 3-blades.
Cub Cadet RZT 50 Specifications
| General Specifications | |
| Model | Cub Cadet RZT 50 |
| Length | – |
| Width | – |
| Height | – |
| Wheel base | – |
| Weight | – |
| Fuel tank capacity | 11.5 liters (3 US gal.; 2.5 Imp. gal) |
| Battery | 12V |
| Cabin type | Open operator station |
| Engine | |
| Engine model | Briggs & Stratton 407577 |
| Engine type | Four-stroke, air-cooled, V-twin |
| Cylinders | 2 |
| Fuel type | Gasoline |
| Displacement | 0.7 L, 656 cm2, (40.0 cu·in) |
| Bore and stroke | 75.0 mm X 73.0 mm (2.95 in X 2.87 in) |
| Horsepower | 22.3 PS (16.4 kW; 22.0 HP) |
| Starter | Electric |
| Oil type | SAE 10W-30 |
| Oil capacity: | 1.9 L (2.01 US. qt, 1.67 Imp. qt.) |
| Transmission and chassis | |
| Chassis | 4×2 2WD |
| Steering type | Differential power |
| Brakes | – |
| Transmission model | Hydro-Gear EZT |
| Transmission type | Hydrostatic |
| Gears | Infinite forward and reverse |
| Tires | |
| Front tires | Lawn/turf: 11x4x5 |
| Rear tires | Lawn/turf: 18×9.5×8 |
| PTO (Power take-off shaft) | |
| Middle PTO type | Independent with electric clutch |
| Middle PTO spped | – |
