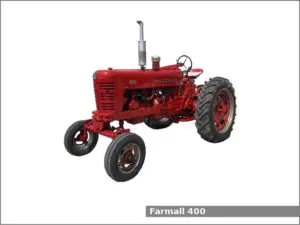

Farmall 400

Farmall 400The Farmall 400 is a 2WD row-crop tractor manufactured by Farmall (a part of International Harvester) in Rock Island, Illinois, USA from 1954 to 1956. The Farmall 400 is equipped with one of two engines: a 4.3 L (264.0 cu·in) four-cylinder gasoline/LP-gas engine or a 4.3 L (264.0 cu·in) four-cylinder diesel engine and a partial power shift transmission with 10 forward and 2 reverse gears and dry disc clutch.

The tractor could be equipped with the following engines:

  • International Harvester C264. It is a 4.3 L, 4,326 cm2, (264.0 cu·in) four-cylinder natural aspirated gasoline/LP-gas engine with 102.0 mm (4.02 in) of the cylinder bore and 133.0 mm (5.24 in) of the piston stroke. The compression ratio rating is 6.3:1 for gasoline version or 8.33:1 for LP-gas version.
  • International Harvester. It is a 4.3 L, 4,326 cm2, (264.0 cu·in) four-cylinder natural aspirated diesel engine. The cylinder bore is 102.0 mm (4.02 in) and the piston stroke is 133.0 mm (5.24 in). The compression ratio rating is 16.5:1.

The Farmall 400 is equipped with manual or power (option) steering, manual disc brakes, open operator station, and 81.4 liters (21.5 US gal.; 17.9 Imp. gal) fuel tank.

Farmall 400 Specifications

General Specifications
Model Farmall 400
Length 3,580 mm (140.9 in)
Width 2,720 mm (107.1 in)
Height (steering wheel) 2,050 mm (80.7 in)
Wheel base 2,430 mm (95.7 in)
Weight (operating) 2,860 kg (6,305 lbs)
Fuel tank capacity 81.4 liters (21.5 US gal.; 17.9 Imp. gal)
Battery Gas: 6V, Diesel: 12V
Cabin type Open operator station
Engine
Engine model International Harvester C264
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Gasoline/LP-gas
Displacement 4.3 L, 4,326 cm2, (264.0 cu·in)
Bore and stroke 102.0 mm X 133.0 mm (4.02 in X 5.24 in)
Compression ratio Gasoline: 6.3:1
LP-gas: 8.33:1
Horsepower
Starter Electric
Oil capacity: 7.6 L (8 US. qt, 6.7 Imp. qt.)
Coolant capacity: 24.6 L (26 US. qt, 21.6 Imp. qt.)
Engine
Engine model International Harvester
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 4.3 L, 4,326 cm2, (264.0 cu·in)
Bore and stroke 102.0 mm X 133.0 mm (4.02 in X 5.24 in)
Compression ratio 16.5:1
Horsepower
Starter Electric
Oil capacity: 8.5 L (9 US. qt, 7.5 Imp. qt.)
Coolant capacity: 27.4 L (29 US. qt, 24.1 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual or power (option)
Brakes Manual disc
Transmission model Torque Amplifier
Transmission type Partial power shift with dry disc clutch
Gears 10 forward and 2 reverse
Speed Forward: 26.9 kmh (16.7 mph) Reverse: 5.3 (3.3 mph)
Tires
Front tires Ag: 6.00-16
Rear tires Ag: 12-38
Three-Point Hitch
Category IH Fast Hitch (optional)
Control type
Lift capacity (at ends) 907 kg (2,000 lbs)
PTO (Power take-off shaft)
Rear PTO type Transmission or independent (optional)
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Hydra-Touch
Hydraulic capacity 13.2 L (3.5 US. gal, 2.9 Imp. gal.)
Valves 3
