Ford 1120

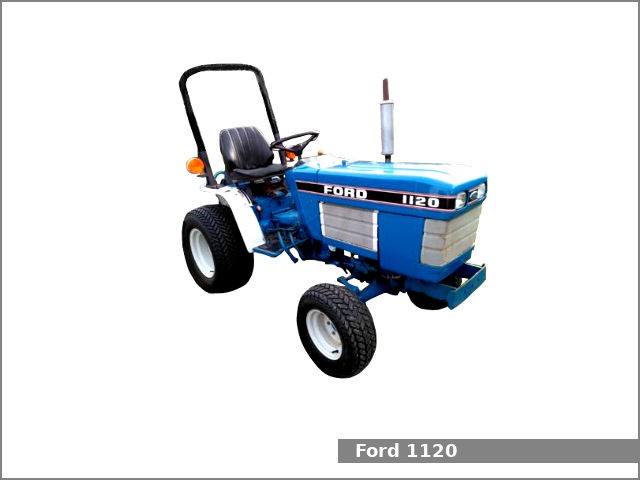

Ford 1120The Ford 1120 is a 2WD or 4WD compact utility tractor from the Twenty Compact series. This tractor was manufactured by Shibaura for Ford in Japan from 1987 to 1993. The Ford 1120 is equipped with a 0.9 L three-cylinder diesel engine and one of two transmissions: gear type transmission with 9 forward and 3 reverse gears or hydrostatic transmission with infinite (2-range) forward and reverse gears.

The Ford 1120 compact utility tractor used the Shibaura S723 engine. It is a 0.9 L, 879 cm2, (53.6 cu·in) three-cylinder natural aspirated diesel engine with 72.0 mm (2.83 in) of the cylinder bore and 72.0 mm (2.83 in) of the piston stroke. The compression ratio rating is 23.0:1. This engine produced 20 PS (14.7 kW; 19.7 HP) at 2,500 rpm of maximum output power.

The Ford 1120 is equipped with manual or power (optional) steering, expanding shoe brakes, open operator station with two-post ROPS and 18.2 liters (4.8 US gal.; 4 Imp. gal) fuel tank.

Following attachments are available for the Ford 1120 compact utility tractor:

  • Mid-mount Ford 914: 48 in (1,210 mm) mower deck
  • Front-mount Ford 702C: 60 in (1,520 mm) blade
  • Front-mount Ford 715A: 51 in (1,290 mm) snowblower
  • Ford 7106 loader
  • Ford 756B backhoe

Ford 1120 Specifications

General Specifications
Model Ford 1120
Length 2,700 mm (106.3 in)
Width 1,030 mm (40.6 in)
Height 2,030 mm (79.9 in)
Wheel base 1,400 mm (55.1 in)
Weight 2WD: 605 kg (1,335 lbs)
4WD: 650 kg (1,430 lbs)
Fuel tank capacity 18.2 liters (4.8 US gal.; 4 Imp. gal)
Battery 12V
Cabin type Open operator station with two-post ROPS
Engine model Shibaura S723
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 0.9 L, 879 cm2, (53.6 cu·in)
Bore and stroke 72.0 mm X 72.0 mm (2.83 in X 2.83 in)
Compression ratio 23.0:1
Horsepower 20 PS (14.7 kW; 19.7 HP) at 2,500 rpm
Starter Electric
Injection timing 23-24° BTDC
Injector opening pressure 1,705 psi (11,760 kPa)
Oil capacity: 3.3 L (3.49 US qts., 2.9 Imp. qts.)
Coolant capacity: 3.5 L (3.7 US qts., 3.1 Imp. qts)
Intake/Exhaust valve clearance 0.20 mm (0.008 in)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Manual or power (optional)
Brakes Expanding shoe
Transmission model
Transmission type Gear type
Gears 9 forward and 3 reverse
Transmission model
Transmission type Hydrostatic
Gears Infinite (2-range) forward and reverse
Front tires Ag: 4.00-12 (2WD), 5-12 (4WD)
Rear tires Ag: 8-16
Three-Point Hitch
Caterogy I
Control type
Lift capacity (at ends) 640 kg (1,410 lbs)
PTO (Power take-off shaft)
Middle PTO type Optional
Middle PTO speed 2,000 rpm
Rear PTO type Transmission or live (option)
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Open center
Pump flow 4.7 gpm (17.8 lpm)
