Ford 2910

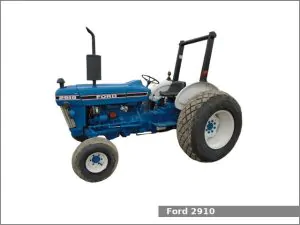

Ford 2910The Ford 2910 is a 2WD or 4WD utility tractor from the 10 Utility series. This tractor was manufactured by Ford from 1983 to 1989. The Ford 2910 is equipped with a 2.9 L (175.0 cu·in) three-cylinder diesel engine and one of three transmission variants.

The Ford 2910 utility tractor used the Ford engine. It is a 2.9 L, 2,868 cm2, (175.0 cu·in) three-cylinder natural aspirated diesel engine with 107.0 mm (4.21 in) of the cylinder bore and 107.0 mm (4.21 in) of the piston stroke. The compression ratio rating is 17.3:1. This engine produced 44.6 PS (32.8 kW; 44.0 HP) at 2,000 rpm of output power and 160.0 N·m (16.3 kg·m, 117.9 ft·lb) at 1,400 rpm of torque.

The Ford 2910 is equipped with power assist steering, differential wet disc brakes, two-post fixed ROPS or Cab (optional), and 49.2 liters (13 US gal.; 10.8 Imp. gal) fuel tank.

Following attachments are available for the Ford 2910 utility tractor:

  • Ford 776A loader
  • Ford 776B loader

Ford 2910 Specifications

General Specifications
ModelFord 2910
Length3,230 mm (127.2 in)
Width1,730 mm (68.1 in)
Height (ROPS)2,370 mm (93.3 in)
Wheel base 2WD: 1,960 mm (77.2 in)
4WD: 2,130 mm (83.9 in)
Ground clearance (rear axle)520 mm (20.5 in)
Weight (operating) 2WD: 2,000 kg (4,409 lbs)
4WD: 2,245 kg (4,949 lbs)
Fuel tank capacity49.2 liters (13 US gal.; 10.8 Imp. gal)
Battery12V, 128Ah
Cabin typeTwo-post fixed ROPS or Cab (optional)
Engine
Engine modelFord
Engine typeFour-stroke, liquid-cooled, inline
Cylinders3
Fuel typeDiesel
Displacement2.9 L, 2,868 cm2, (175.0 cu·in)
Bore and stroke107.0 mm X 107.0 mm (4.21 in X 4.21 in)
Compression ratio17.3:1
Horsepower44.6 PS (32.8 kW; 44.0 HP) at 2,000 rpm
Torque160.0 N·m (16.3 kg·m, 117.9 ft·lb) at 1,400 rpm
StarterElectric
Oil capacity:6.6 L (7 US. qt, 5.8 Imp. qt.)
Coolant capacity:10.4 L (11 US. qt, 9.2 Imp. qt.)
Transmission and chassis
Chassis4×2 2WD or 4×4 MFWD 4WD
Steering typePower assist
BrakesDifferential wet disc
Final driveInboard planetary
Differential lockMechanical rear
Transmission model
Transmission typeDual Range
Gears8 forward and 2 reverse
Speed Forward: 29.8 kmh (18.5 mph) Reverse: 14.3 kmh (8.9 mph)
Transmission oil capacity12.0 L (3.2 US. gal, 2.6 Imp. gal.)
Transmission model
Transmission typeSynchromesh
Gears8 forward and 4 reverse
Speed Forward: 29.7 kmh (18.5 mph) Reverse: 10.7 kmh (6.7 mph)
Transmission oil capacity9.4 L (2.5 US. gal, 2.1 Imp. gal.)
Transmission model
Transmission typeMechanical shuttle
Gears6 forward and 4 reverse
Speed Forward: 28.8 kmh (17.9 mph) Reverse: 25.9 kmh (16.1 mph)
Tires
Front tires Ag: 5.50-16 (2WD), 8.3-24 (4WD)
Rear tires Ag: 12.4-28
Three-Point Hitch
CategoryI
Control typePosition and top-link draft control
Lift capacity (at ends)
PTO (Power take-off shaft)
Rear PTO typeIndependent
Rear PTO speed540 rpm
Hydraulic system
Hydraulic typeOpen center
Hydraulic capacity45.8 L (12.1 US. gal, 10.1 Imp. gal.)
Pressure2500 psi (172.4 bar)
Pump flow 7.7 gpm (29.1 lpm)
12.8 gpm (48.5 lpm)
Steering flow3.6 gpm (13.6 lpm)
