Ford 2N

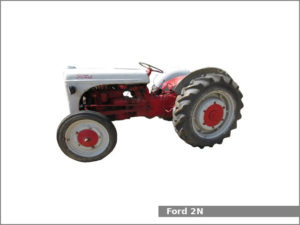

Ford 2NThe Ford 2N is a 2WD utility tractor manufactured by Ford in Dearborn, Michigan, USA from 1942 to 1947. The Ford 2N is equipped with a 2.0 L (120.0 cu·in) four-cylinder gasoline engine and a sliding gear transmission with 3 forward and 1 reverse gear.

The Ford 2N utility tractor used the Ford engine. It is a 2.0 L, 1,966 cm2, (120.0 cu·in) four-cylinder natural aspirated gasoline engine with 81.0 mm (3.19 in) of the cylinder bore and 95.0 mm (3.74 in) of the piston stroke. The compression ratio rating is 6.0:1. This engine produced 23.4 PS (17.2 kW; 23.0 HP) at 2,000 rpm of PTO output power.

The Ford 2N is equipped with manual steering, differential mechanical drum brakes, open operator station, and 37.9 liters (10 US gal.; 8.3 Imp. gal) fuel tank.

Ford 2N Specifications

General Specifications
Model Ford 2N
Length 2,920 mm (115 in)
Width 1,620 mm (63.8 in)
Height 1,320 mm (52 in)
Wheel base
Ground clearance 330 mm (13 in)
Weight 1,390 kg (3,064 lbs)
Fuel tank capacity 37.9 liters (10 US gal.; 8.3 Imp. gal)
Battery 6V
Cabin type Open operator station
Engine
Engine model Ford
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Gasoline
Displacement 2.0 L, 1,966 cm2, (120.0 cu·in)
Bore and stroke 81.0 mm X 95.0 mm (3.19 in X 3.74 in)
Compression ratio 6.0:1
Horsepower 23.4 PS (17.2 kW; 23.0 HP) at 2,000 rpm
Torque 113.9 N·m (11.6 kg·m, 83.9 ft·lb) at 1,500 rpm
Starter Electric
Oil capacity: 5.7 L (6 US. qt, 5 Imp. qt.)
Coolant capacity: 11.4 L (12 US. qt, 10 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual
Brakes Differential mechanical drum
Transmission model
Transmission type Sliding gear
Gears 3 forward and 1 reverse
Speed Forward: 18.9 kmh (11.7 mph) Reverse: 7.0 (4.4 mph)
Transmission oil capacity 18.9 L (5 US. gal, 4.2 Imp. gal.)
Tires
Front tires Ag: 4.00-19
Rear tires Ag: 10.00-28
Three-Point Hitch
Category I
Control type
Lift capacity (at ends) 362 kg (800 lbs)
PTO (Power take-off shaft)
Rear PTO type Transmission
Rear PTO speed 545 rpm
