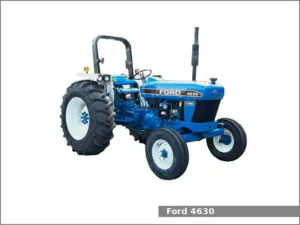

Ford 4630

Ford 4630The Ford 4630 is a 2WD or 4WD utility tractor from the 30 Utility series. This tractor was manufactured by Ford from 1990 to 1993.

The Ford 4630 is equipped with one of two engines: a 3.3 L (201.0 cu·in) three-cylinder diesel engine or a 3.1 L (192.0 cu·in) three-cylinder turbocharged diesel engine and one of three transmissions: a transmission with 8 forward and 2 reverse gears, a synchronized shuttle transmission with dry disc clutch and 8 forward and 8 reverse gears or a partial power shift transmission with dry disc clutch and 16 forward and 8 reverse gears.

The tractor could be equipped with the following engines:

  • Ford. It is a 3.3 L, 3,294 cm2, (201.0 cu·in) three-cylinder natural aspirated diesel engine with 112.0 mm (4.41 in) of the cylinder bore and 112.0 mm (4.41 in) of the piston stroke. The compression ratio rating is 16.3:1. This engine produced 60.8 PS (44.7 kW; 60.0 HP) at 2,200 rpm of output power.
  • Ford. It is a 3.1 L, 3,146 cm2, (192.0 cu·in) three-cylinder turbocharged diesel engine. The cylinder bore is 112.0 mm (4.41 in) and the piston stroke is 107.0 mm (4.21 in). The compression ratio rating is 16.1:1. This engine produced 0 PS ( kW; 0 HP) at rpm of output power.

The Ford 4630 is equipped with hydrostatic power steering, two-post ROPS or cab (optional), and 65.5 liters (17.3 US gal.; 14.4 Imp. gal) fuel tank for ROPS version or 95.8 liters (25.3 US gal.; 21.1 Imp. gal) for the cab version.

Ford 4630 Specifications

General Specifications
ModelFord 4630
Length3,530 mm (139 in)
Width
Height ROPS: 2,500 mm (98.4 in)
Cab: 2,520 mm (99.4 in)
Wheel base 2WD: 2,140 mm (84.3 in)
4WD: 2,130 mm (84.1 in)
Weight2,580 kg (5,688 lbs)
Fuel tank capacity ROPS: 65.5 liters (17.3 US gal.; 14.4 Imp. gal)
Cab: 95.8 liters (25.3 US gal.; 21.1 Imp. gal)
Battery12V, CCA 800A
Cabin typeTwo-post ROPS or Cab (optional)
Engine
Engine modelFord
Engine typeFour-stroke, liquid-cooled, inline
Cylinders3
Fuel typeDiesel
Displacement3.3 L, 3,294 cm2, (201.0 cu·in)
Bore and stroke112.0 mm X 112.0 mm (4.41 in X 4.41 in)
Compression ratio16.3:1
Horsepower60.8 PS (44.7 kW; 60.0 HP) at 2,200 rpm
StarterElectric
Coolant capacity:10.6 L (11.2 US. qt, 9.3 Imp. qt.)
Engine
Engine modelFord
Engine typeFour-stroke, liquid-cooled, inline
Cylinders3
Fuel typeDiesel
Displacement3.1 L, 3,146 cm2, (192.0 cu·in)
Bore and stroke112.0 mm X 107.0 mm (4.41 in X 4.21 in)
Compression ratio16.1:1
Horsepower
StarterElectric
Transmission and chassis
Chassis4×2 2WD or 4×4 MFWD 4WD
Steering typeHydrostatic power
Brakes
Transmission model
Transmission type
Gears8 forward and 2 reverse
Speed Forward: 24.8 kmh (15.4 mph) Reverse: 12.0 (7.5 mph)
Transmission model
Transmission typeSynchronized shuttle with dry disc clutch
Gears8 forward and 8 reverse
Transmission modelDual-Power
Transmission typePartial power shift with dry disc clutch
Gears16 forward and 8 reverse
Tires
Front tiresAg: 7.50-15
Rear tiresAg: 13.6-28
Three-Point Hitch
CaterogyII/I
Control typePosition control with top link draft sensing
Lift capacity (at ends)1,395 kg (3,080 lbs)
PTO (Power take-off shaft)
Rear PTO typeIndependent
Rear PTO speed540 rpm
Hydraulic system
Hydraulic typeOpen center or closed center
Pressure2500 psi (172.4 bar)
Valves Open center: 1 to 2
Closed center: 1 to 4
Pump flow 8.5 gpm (32.2 lpm)
14.1 gpm (53.4 lpm) (optional)
Steering flow3.6 gpm (13.6 lpm)
ATTENTION! Dear visitors, this site is not a trading platform, an official dealer or a spare parts supplier, so we do not have any price lists, spare parts catalogs, service or owner manuals. We are an information portal and provide the technical specifications.

We try to use verified sources and official documentation, however, differences between sources or errors in entering information may occur. In addition, the characteristics may vary depending on the modification and market. We do not provide advice on technical issues related to the any operation or repair. We do not recommend using provided information for repairing or spare parts ordering, use only official service manuals and spare-parts catalogs.
