Ford 5000 (1968-1976)

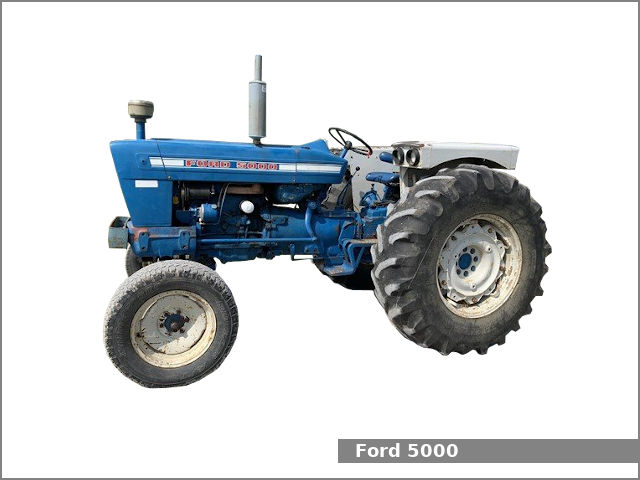

Ford 5000 (1968-1976)The Ford 5000 is a 2WD row-crop tractor manufactured by Ford in Highland Park, Michigan, USA from 1965 to 1976. This second generation was manufactured from 1968 to 1976.

The Ford 5000 is equipped with one of two engines: a 4.2 L (256.0 cu·in) four-cylinder gasoline engine or a 4.2 L (256.0 cu·in) four-cylinder diesel engine and one of three transmissions: a sliding gear transmission with 8 forward and 2 reverse gears, a full powershift transmission with 10 forward and 2 reverse gears or a partial power shift transmission with 16 forward and 4 reverse gears.

The tractor could be equipped with the following engines:

  • Ford. It is a 4.2 L, 4,195 cm2, (256.0 cu·in) four-cylinder natural aspirated gasoline engine with 112.0 mm (4.41 in) of the cylinder bore and 107.0 mm (4.21 in) of the piston stroke. This engine produced 68.3 PS (50.2 kW; 67.3 HP) at 2,100 rpm of PTO output power (tested).
  • Ford. It is a 4.2 L, 4,195 cm2, (256.0 cu·in) four-cylinder natural aspirated diesel engine. The cylinder bore is 112.0 mm (4.41 in) and the piston stroke is 107.0 mm (4.21 in). This engine produced 68.3 PS (50.2 kW; 67.3 HP) at 2,100 rpm of PTO output power (tested).

The Ford 5000 is equipped with the power assist (Ford 5100) or hydrostatic power (Ford 5200) steering, differential mechanical wet disc brakes, Open operator station. and 75.7 liters (20 US gal.; 16.7 Imp. gal) fuel tank. This tractor could be equipped with the Ford 772 loader.

Ford 5000 variants:

  • 5100: general purpose
  • 5200: row-crop

Ford 5000 Specifications

General Specifications
ModelFord 5000
Length General pu: 3,590 mm (141.3 in)
Row-crop: 3,780 mm (148.8 in)
Width1,730 mm (68.1 in)
Height (steering wheel)1,610 mm (63.4 in)
Wheel base General pu: 2,220 mm (87.4 in)
Row-crop: 2,430 mm (95.7 in)
Ground clearance360 mm (14.2 in)
Weight (shipping) General purpose: 2,600 kg (5,732 lbs)
Row-crop: 2,835 kg (6,250 lbs)
Fuel tank capacity75.7 liters (20 US gal.; 16.7 Imp. gal)
Battery12V, 80 Ah (Gas), 128 Ah (Diesel)
Cabin typeOpen operator station.
Engine
Engine modelFord
Engine typeFour-stroke, liquid-cooled, inline
Cylinders4
Fuel typeGasoline
Displacement4.2 L, 4,195 cm2, (256.0 cu·in)
Bore and stroke112.0 mm X 107.0 mm (4.41 in X 4.21 in)
Horsepower68.3 PS (50.2 kW; 67.3 HP) at 2,100 rpm
StarterElectric
Engine
Engine modelFord
Engine typeFour-stroke, liquid-cooled, inline
Cylinders4
Fuel typeDiesel
Displacement4.2 L, 4,195 cm2, (256.0 cu·in)
Bore and stroke112.0 mm X 107.0 mm (4.41 in X 4.21 in)
Horsepower68.3 PS (50.2 kW; 67.3 HP) at 2,100 rpm
StarterElectric
Transmission and chassis
Chassis4×2 2WD
Steering typePower assist or hydrostatic power
BrakesDifferential mechanical wet disc
Transmission model
Transmission typeSliding gear
Gears8 forward and 2 reverse
Speed Forward: 27.0 kmh (16.8 mph) Reverse: 13.0 kmh (8.1 mph)
Transmission oil capacity10.2 L (2.7 US. gal, 2.2 Imp. gal.)
Transmission modelSelect-O-Speed
Transmission typeFull power shift
Gears10 forward and 2 reverse
Speed Forward: 26.4 kmh (16.4 mph) Reverse: 7.4 kmh (4.6 mph)
Transmission oil capacity11.2 L (3 US. gal, 2.5 Imp. gal.)
Transmission modelDual Power
Transmission typePartial power shift
Gears16 forward and 4 reverse
Tires
Front tires Ag: 6.00-16, 7.50-16
Rear tires Ag: 12.4-38, 13.6-38, 15.5-38, 16.9-30, 18.4-26
Three-Point Hitch
CategoryII/I
Control type
Lift capacity (at ends)
PTO (Power take-off shaft)
Rear PTO typeIndependent
Rear PTO speed540 or 540/1000 rpm
Hydraulic system
Hydraulic typeOpen center
Hydraulic capacity32.9 L (8.7 US. gal, 7.2 Imp. gal.)
Pressure2500 psi (172.4 bar)
Pump flow6.0 gpm (22.7 lpm)
Steering flow4.5 gpm (17 lpm)
