Ford 5640

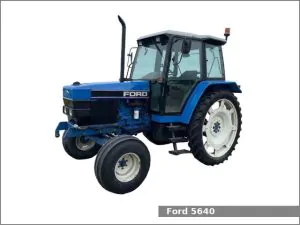

Ford 5640The Ford 5640 is a 2WD or 4WD utility tractor from the PowerStar 40 series. This tractor was manufactured by Ford in Basildon, England from 1991 to 1995. The Ford 5640 is equipped with a 4.4 L (268.0 cu·in) four-cylinder diesel engine and one of four transmissions: a constant mesh transmission with 8 forward and 2 reverse gears, a two-speed power shift transmission with 16 forward and 4 reverse gears or a synchronized shuttle transmission with 12 forward and 12 reverse gears, or four-speed power shift transmission with 16 forward and 16 reverse gears.

The Ford 5640 utility tractor used the Ford Genesis engine. It is a 4.4 L, 4,392 cm2, (268.0 cu·in) four-cylinder natural aspirated diesel engine with 112.0 mm (4.41 in) of the cylinder bore and 112.0 mm (4.41 in) of the piston stroke. The compression ratio rating is 17.5:1. This engine produced 79.8 PS (58.7 kW; 78.7 HP) at 2,200 rpm of output power.

The Ford 5640 is equipped with hydrostatic power steering, mechanical (S) or hydraulic wet disc (SL/SLE) brakes, and 94.6 liters (25 US gal.; 20.8 Imp. gal) standard fuel tank.

The Ford 5640 tractor variants:

  • 5640S: 8-speed Economy versio
  • 5640SL: 12-speed version
  • 5640SLE: 16-speed Premium version

Ford 5640 Specifications

General Specifications
Model Ford 5640
Length 4,110 mm (161.8 in)
Width 2WD: 1,950 mm (76.8 in)
4WD: 2,030 mm (79.9 in)
Height (cab) 2,710 mm (106.7 in)
Wheel base 2,360 mm (92.9 in)
Ground clearance (front axle) 2WD: 550 mm (21.7 in)
4WD: 500 mm (19.7 in)
Weight (operating) 4WD ROPS: 3,660 kg (8,069 lbs)
Fuel tank capacity Standard: 94.6 liters (25 US gal.; 20.8 Imp. gal)
ROPS (optional): 199.5 liters (52.7 US gal.; 43.9 Imp. gal)
Cab (optional): 177.5 liters (46.9 US gal.; 39.0 Imp. gal)
Battery One 12V (ROPS), Two 12V (Cab), CCA 800A
Cabin type Two-post foldable ROPS. Straddle-mount (5640S) or raised deck (SL/SLE). Comfort Command Cab optional (SL/SLE).
Engine
Engine model Ford Genesis
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 4.4 L, 4,392 cm2, (268.0 cu·in)
Bore and stroke 112.0 mm X 112.0 mm (4.41 in X 4.41 in)
Compression ratio 17.5:1
Horsepower 79.8 PS (58.7 kW; 78.7 HP) at 2,200 rpm
Starter Electric
Oil type SAE 10W-30
Oil capacity: 11.5 L (12.2 US. qt, 10.1 Imp. qt.)
Coolant capacity: ROPS: 14.5 L (15.3 US. qt, 12.8 Imp. qt.)
Cab: 16.0 L (16.9 US. qt, 14.1 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes Mechanical (S) or hydraulic wet disc (SL/SLE)
Final drive Inboard planetary
Transmission model EconoShift
Transmission type Constant mesh with dry disc clutch
Gears 8 forward and 2 reverse
Speed Forward: 30.3 kmh (18.8 mph) Reverse: 14.6 kmh (9.1 mph)
Transmission oil capacity 65.9 L (17.4 US. gal, 14.5 Imp. gal.)
Transmission model Dual Power
Transmission type Two-speed power shift with dry disc clutch
Gears 16 forward and 4 reverse
Speed Forward: 30.3 kmh (18.8 mph) Reverse: 14.6 kmh (9.1 mph)
Transmission oil capacity 65.9 L (17.4 US. gal, 14.5 Imp. gal.)
Transmission model SynchroShift
Transmission type Synchronized shuttle with dry disc clutch
Gears 12 forward and 12 reverse
Speed Forward: 30.9 kmh (19.2 mph)
Transmission model ElectroShift / Pulse Command
Transmission type Four-speed power shift with wet disc clutch
Gears 16 forward and 16 reverse
Speed Forward: 30.7 kmh (19.1 mph)
Transmission oil capacity 60.6 L (16 US. gal, 13.3 Imp. gal.)
Tires
Front tires Ag: 7.50-16
Rear tires Ag: 16.9-30
Three-Point Hitch
Category II
Control type Position control and top-link draft sensing
Electronic lower-link sensing optional (SLE)
Lift capacity (at 610 mm/24 in) 1,905 kg (4,200 lbs)
Optional: 2,015 kg (4,440 lbs)
SLE: 2,815 kg (6,210 lbs)
SLE (optional): 2,975 kg (6,565 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 540, 540/1000 (optional) rpm
Hydraulic system
Hydraulic type Open center (S/SL) or closed center load sensing (SLE)
Valves 1 to 4
Pump flow 18.2 gpm (68.9 lpm)
SLE: 21.0 gpm (79.5 lpm)
ATTENTION! Dear visitors, this site is not a trading platform, an official dealer or a spare parts supplier, so we do not have any price lists, spare parts catalogs, service or owner manuals. We are an information portal and provide the technical specifications.

We try to use verified sources and official documentation, however, differences between sources or errors in entering information may occur. In addition, the characteristics may vary depending on the modification and market. We do not provide advice on technical issues related to the any operation or repair. We do not recommend using provided information for repairing or spare parts ordering, use only official service manuals and spare-parts catalogs.
