Ford 7700

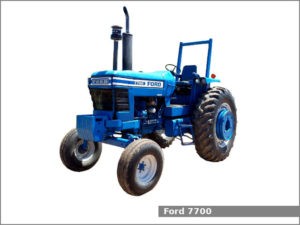

Ford 7700The Ford 7700 is a 2WD or 4WD row-crop tractor manufactured by Ford from 1975 to 1981.

The Ford 7700 is equipped with one of two engines: a 4.2 L (256.0 cu·in) four-cylinder diesel engine or a 4.4 L (268.0 cu·in) four-cylinder diesel engine (this engine was available in 1981, only) and one of two transmissions: a partial power shift transmission with dry plate clutch and 16 forward and 4 reverse gears or a gear type transmission with 8 forward and 2 reverse gears.

The Ford 7700 is equipped with power assist steering, differential wet disc brakes, open operator station or Cab (optional) and 178.0 liters (47 US gal.; 39.2 Imp. gal) fuel tank.

The tractor could be equipped with the following engines:

  • Ford diesel engine. It is a 4.2 L, 4,195 cm2, (256.0 cu·in) four-cylinder turbocharged diesel engine with 112.0 mm (4.41 in) of the cylinder bore and 107.0 mm (4.21 in) of the piston stroke. The compression ratio rating is 15.6:1. This engine produced 98.1 PS (72.1 kW; 96.7 HP) at 2,100 rpm of output power and 368.8 N·m (37.6 kg·m, 271.8 ft·lb) at 1,600 rpm of torque.
  • Ford diesel engine. It is a 4.4 L, 4,392 cm2, (268.0 cu·in) four-cylinder turbocharged diesel engine. The cylinder bore is 112.0 mm (4.41 in) and the piston stroke is 112.0 mm (4.41 in).

Following attachments are available for the Ford 7700 row-crop tractor:

  • Ford 772 loader
  • Ford 774 loader
  • Ford 772QT loader

Ford 7700 Specifications

General Specifications
Model Ford 7700
Length 3,810 mm (150 in)
Width 1,870 mm (73.6 in)
Height (exhaust) 3,070 mm (120.9 in)
Wheel base 2,580 mm (101.6 in)
Weight (operating) 3,810 kg (8,400 lbs)
Fuel tank capacity 178.0 liters (47 US gal.; 39.2 Imp. gal)
Battery
Cabin type Open operator station or Cab (optional)
Engine
Engine model Ford
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 4.2 L, 4,195 cm2, (256.0 cu·in)
Bore and stroke 112.0 mm X 107.0 mm (4.41 in X 4.21 in)
Compression ratio 15.6:1
Horsepower 98.1 PS (72.1 kW; 96.7 HP) at 2,100 rpm
Torque 368.8 N·m (37.6 kg·m, 271.8 ft·lb) at 1,600 rpm
Starter Electric
Oil capacity: 8.5 L (9 US. qt, 7.5 Imp. qt.)
Coolant capacity: 17.0 L (18.0 US. qt, 15.0 Imp. qt.)
19.4 L (20.5 US. qt, 17.1 Imp. qt.)
Engine
Engine model Ford
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 4.4 L, 4,392 cm2, (268.0 cu·in)
Bore and stroke 112.0 mm X 112.0 mm (4.41 in X 4.41 in)
Horsepower
Starter Electric
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Power assist
Brakes Differential wet disc
Transmission model Ford Dual Power
Transmission type Partial power shift with dry plate clutch
Gears 16 forward and 4 reverse
Transmission model
Transmission type Gear type
Gears 8 forward and 2 reverse
Speed Forward: 30.0 kmh (18.6 mph) Reverse: 14.5 (9 mph)
Tires
Front tires Ag: 7.50-18
Rear tires Ag: 18.4-34
Three-Point Hitch
Caterogy II
Control type
Lift capacity (at ends) 2,010 kg (4,430 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 540/1,000 rpm
