Ford TW-10

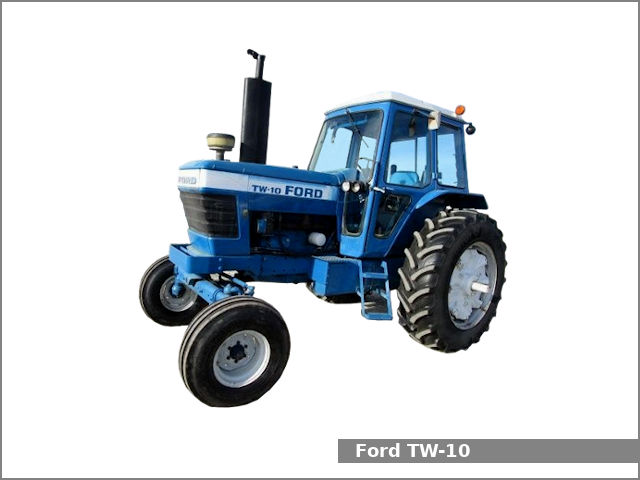

Ford TW-10The Ford TW-10 is a 2WD/4WD row-crop tractor from the TW series. This tractor was manufactured by Ford in Romeo, Michigan, USA from 1979 to 1983. The Ford TW-10 is equipped with a 6.6 L (401.0 cu·in) six-cylinder diesel engine and one of two transmissions: a dual power transmission with 16 forward and 4 reverse gears or transmission with 8 forward and 2 reverse gears.

The Ford TW10 row-crop tractor used the Ford engine. It is a 6.6 L, 6,571 cm2, (401.0 cu·in) six-cylinder natural aspirated diesel engine with 112.0 mm (4.41 in) of the cylinder bore and 112.0 mm (4.41 in) of the piston stroke. The compression ratio rating is 16.3:1. This engine produced 124.7 PS (91.7 kW; 123.0 HP) at 2,300 rpm of output power.

The Ford TW-10 is equipped with hydrostatic power steering, differential hydraulic wet discs brakes, open operator station with ROPS or cab, and 125.0 liters (33 US gal.; 27.5 Imp. gal) fuel tank.

Ford TW-10 Specifications

General Specifications
Model Ford TW10
Length 4,460 mm (175.6 in)
Width 2,640 mm (103.9 in)
Height ROPS: 2,860 mm (112.6 in)
Cab: 2,940 mm (115.7 in)
Wheel base 2,780 mm (109.4 in)
Short: 2,380 mm (93.7 in)
Ground clearance 2WD: 640 mm (25.2 in)
4WD: 400 mm (15.7 in)
Weight (operating) 5,835 kg (12,864 lbs)
Fuel tank capacity 125.0 liters (33 US gal.; 27.5 Imp. gal)
Battery 12V, 128Ah
Cabin type Open operator station with ROPS or Cab optional with available air-conditioning
Engine
Engine model Ford
Engine type Four-stroke, liquid-cooled, inline
Cylinders 6
Fuel type Diesel
Displacement 6.6 L, 6,571 cm2, (401.0 cu·in)
Bore and stroke 112.0 mm X 112.0 mm (4.41 in X 4.41 in)
Compression ratio 16.3:1
Horsepower 124.7 PS (91.7 kW; 123.0 HP) at 2,300 rpm
Torque 425.8 N·m (43.4 kg·m, 313.8 ft·lb) at 1,800 rpm
Starter Electric
Oil type SAE 10W-30
Oil capacity: 18.9 L (20 US. qt, 16.6 Imp. qt.)
Coolant capacity: 19.9 L (21 US. qt, 17.5 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes Differential hydraulic wet discs
Transmission model
Transmission type Dual Power with cerametallic disc clutch
Gears 16 forward and 4 reverse
Speed Forward: 31.5 kmh (19.6 mph) Reverse: 13.1 kmh (8.1 mph)
Transmission oil capacity 74.8 L (19.8 US. gal, 16.5 Imp. gal.)
Transmission model
Transmission type
Gears 8 forward and 2 reverse
Speed Forward: 31.5 kmh (19.6 mph) Reverse: 13.1 kmh (8.1 mph)
Transmission oil capacity 69.1 L (18.3 US. gal, 15.2 Imp. gal.)
Tires
Front tires Ag: 10.00-16 (2WD), 14.9-24 (4WD)
Rear tires Ag: 18.4-38
Three-Point Hitch
Category II
Control type
Lift capacity (at 610 mm/24 in) 2720 kg (5998 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 540/1000 rpm
Hydraulic system
Hydraulic type Open center
Hydraulic capacity 69.1 L (18.3 US. gal, 15.2 Imp. gal.)
Dual Power: 74.8 L (19.8 US. gal, 16.5 Imp. gal.)
Pressure 2500 psi (172.4 bar)
Pump flow 16.0 gpm (60.6 lpm)
Service pump: 8.0 gpm (30.3 lpm)
Steering flow 4.2 gpm (15.9 lpm)
