J.I. Case 224

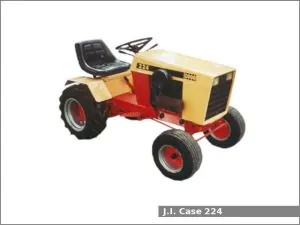

J.I. Case 224The J.I. Case 224 is a 2WD garden tractor from the 200 series. This tractor was manufactured by J.I. Case in Winneconne, Wisconsin, USA from 1973 to 1988. The J.I. Case 224 is equipped with a 0.5 L (31.2 cu·in) single-cylinder gasoline engine and a hydraulic drive transmission with infinite (2-range) forward and reverse gears.

The J.I. Case 224 garden tractor used the Kohler K321AS engine. It is a 0.5 L, 512 cm2, (31.2 cu·in) single-cylinder natural aspirated gasoline engine with 89.0 mm (3.5 in) of the cylinder bore and 83.0 mm (3.27 in) of the piston stroke. The compression ratio rating is 7.0:1. This engine produced 14.1 PS (10.4 kW; 13.9 HP) at 3,600 rpm of output power.

The J.I. Case 224 is equipped with manual steering, band brakes, open operator station and 11.4 liters (3 US gal.; 2.5 Imp. gal) fuel tank.

Following attachments are available for the J.I. Case 224 garden tractor:

  • Mid-mount J.I. Case 38 inches (960 mm) mower deck
  • Mid-mount J.I. Case 48 inches (1,210 mm) mower deck
  • Front-mount J.I. Case 44 inches (1,110 mm) blade
  • Front-mount J.I. Case 38 inches (960 mm) snow blower
  • Front-mount J.I. Case 48 inches (1,210 mm) snow blower

J.I. Case 224 Specifications

General Specifications
Model J.I. Case 224
Length 1,650 mm (65 in)
Width 930 mm (36.6 in)
Height (steering wheel) 1,010 mm (39.8 in)
Wheel base 1,160 mm (45.7 in)
Ground clearance 180 mm (7.1 in)
Weight (shipping) 324 kg (714 lbs)
Fuel tank capacity 11.4 liters (3 US gal.; 2.5 Imp. gal)
Battery 12V
Cabin type Open operator station
Engine
Engine model Kohler K321AS
Engine type Four-stroke, air-cooled, inline
Cylinders 1
Fuel type Gasoline
Displacement 0.5 L, 512 cm2, (31.2 cu·in)
Bore and stroke 89.0 mm X 83.0 mm (3.5 in X 3.27 in)
Compression ratio 7.0:1
Horsepower 14.1 PS (10.4 kW; 13.9 HP) at 3,600 rpm
Starter Electric
Oil type SAE 5W-20, 10W-30
Oil capacity: 1.4 L (1.5 US. qt, 1.2 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual
Brakes Band
Transmission model Hy-Drive
Transmission type Hydraulic drive
Gears Infinite (2-range) forward and reverse
Speed Forward: 15.1 kmh (9.4 mph) Reverse: kmh (0 mph)
Transmission oil capacity 6.2 L (1.6 US. gal, 1.4 Imp. gal.)
Tires
Front tires Lawn/turf: 6.50-8
Rear tires Lawn/turf: 8.00-16, 8.50-12, 10.50-12
Three-Point Hitch
Category Sleeve hitch
Control type
Lift capacity
Hydraulic system
Hydraulic type Open center
Hydraulic capacity 5.7 L (1.5 US. gal, 1.3 Imp. gal.)
Pressure 2000 psi (137.9 bar)
Pump flow 8.0 gpm (30.3 lpm)
