John Deere 102

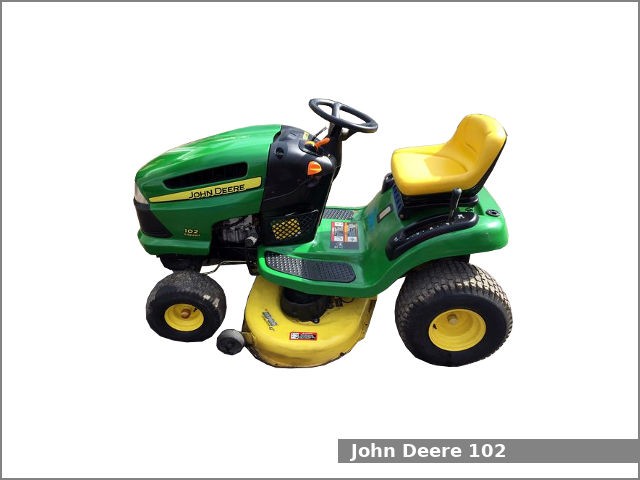

John Deere 102The John Deere 102 is a 2WD lawn tractor manufactured by the John Deere in Greeneville, Tennessee, USA during 2006. The John Deere 102 lawn tractor is equipped with a 0.5 L single-cylinder gasoline engine and gear type transmission with 5 forward and 1 reverse gear.

The John Deere 102 lawn tractor used the Briggs & Stratton 31 engine. It is a 0.5 L, 502 cm2, (30.6 cu·in) single-cylinder natural aspirated gasoline engine with 90.6 mm (3.57 in) of the cylinder bore and 77.8 mm (3.06 in) of the piston stroke. This engine produced 17.3 PS (12.7 kW; 17.0 HP) of maximum output power.

The JD 102 is equipped with manual steering, open operator station, 8.0 liters (2.1 US gal.; 1.8 Imp. gal) fuel tank and mid-mount 42 inches (1,060 mm) mower deck with manual lift.

John Deere 102 Specifications

General Specifications
Model John Deere 102
Length 1,750 mm (68.9 in)
Width 1,310 mm (51.6 in)
Height 1,080 mm (42.5 in)
Wheel base 1,240 mm (48.8 in)
Weight 200 kg (441 lbs)
Fuel tank capacity 8.0 liters (2.1 US gal.; 1.8 Imp. gal)
Battery 12V, Type BCI Group U1
Cabin type Open operator station
Engine
Engine model Briggs & Stratton 31
Engine type Four-stroke, air-cooled
Cylinders 1
Fuel type Gasoline
Displacement 0.5 L, 502 cm2, (30.6 cu·in)
Bore and stroke 90.6 mm X 77.8 mm (3.57 in X 3.06 in)
Horsepower 17.3 PS (12.7 kW; 17.0 HP)
Starter Electric
Oil type SAE 10W-30; API: SG or SF
Oil capacity: 1.4 L (1.5 US. qt, 1.2 Imp. qt.)
Intake valve clearance 0.076-0.127 mm (0.003-0.005 in)
Exhaust valve clearance 0.13-0.18 mm (0.005-0.007 in)
Spark plug gap 0.76 mm (0.030 in)
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual
Brakes
Transmission model Dana 4360
Transmission type Gear type
Gears 5 forward and 1 reverse
Speed Forward: 8.0 kmh (5 mph) Reverse: 3.7 (2.3 mph)
Tires
Front tires Lawn/turf: 15×6.00-6
Rear tires Lawn/turf: 20×8.0-8
