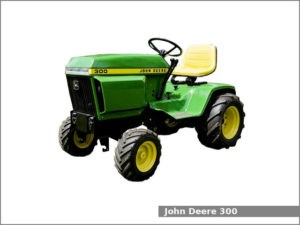

The John Deere 300 is a 2WD garden tractor from the 300 series. This tractor was manufactured by the John Deere in Horicon, Wisconsin, USA from 1975 to 1977. The John Deere 300 is equipped with a 0.6 L single-cylinder gasoline engine and shaft-driven hydrostatic transmission with infinite forward and reverse gears.
The John Deere 300 garden tractor used the Kohler K341AQS engine. It is a 0.6 L, 588 cm2, (35.9 cu·in) single-cylinder natural aspirated gasoline engine with 95.3 mm (3.75 in) of the cylinder bore and 82.6 mm (3.25 in) of the piston stroke. This engine produced 16.2 PS (11.9 kW; 16.0 HP) at 3,500 rpm of maximum output power.
The John Deere 300 is equipped with manual steering, open operator station and 17.0 liters (4.5 US gal.; 3.7 Imp. gal) fuel tank.
Following attachments are available for the John Deere 300 garden tractor:
- Mid-mount John Deere 46 in (1,160 mm) mower deck with 3-blades
- Front-mount John Deere 54 in (1,370 mm) blade
- Front-mount John Deere 49 48 in (1,210 mm) snow blower
John Deere 300 Specifications
| General Specifications | |
| Model | John Deere 300 |
| Length | – |
| Width | – |
| Height | – |
| Wheel base | – |
| Weight | 317 kg (699 lbs) |
| Fuel tank capacity | 17.0 liters (4.5 US gal.; 3.7 Imp. gal) |
| Battery | 12V |
| Cabin type | Open operator station |
| Engine | |
| Engine model | Kohler K341AQS |
| Engine type | Four-stroke, air-cooled, inline |
| Cylinders | 1 |
| Fuel type | Gasoline |
| Displacement | 0.6 L, 588 cm2, (35.9 cu·in) |
| Bore and stroke | 95.3 mm X 82.6 mm (3.75 in X 3.25 in) |
| Horsepower | 16.2 PS (11.9 kW; 16 HP) at 3,500 rpm |
| Starter | Electric |
| Oil type | API SF or SG |
| Oil capacity: | 1.4 L (1.5 US. qt, 1.2 Imp. qt.) |
| Spark plug | Champion RH10 |
| Transmission and chassis | |
| Chassis | 4×2 2WD |
| Steering type | Manual |
| Brakes | – |
| Transmission model | Sundstrand 15 |
| Transmission type | Shaft-driven hydrostatic |
| Gears | Infinite forward and reverse |
| Tires | |
| Front tires | Lawn/turf: – |
| Rear tires | Lawn/turf: – |
