John Deere E170

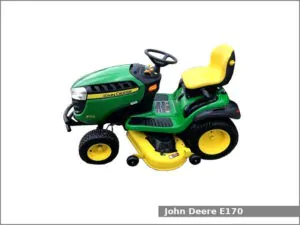

John Deere E170The John Deere E170 is a 2WD lawn tractor from the E100 series. This tractor has been manufactured by the John Deere in Greeneville, Tennessee, USA since 2018. The JD E170 is equipped with a 0.7 L V-twin gasoline engine and belt-driven hydrostatic transmission with infinite forward and reverse gears.

The John Deere E170 lawn tractor used the Briggs & Stratton 44S977 engine. It is a 0.7 L, 724 cm2, (44.2 cu·in) V-twin natural aspirated gasoline engine with 79.0 mm (3.11 in) of the cylinder bore and 73.0 mm (2.87 in) of the piston stroke. This engine produced 25.3 PS (18.6 kW; 25.0 HP) of maximum output power.

The JD E170 is equipped with manual steering, wet disc brakes, open operator station and 9.0 liters (2.4 US gal.; 2 Imp. gal) fuel tank.

Following attachments are available for the John Deere E170 lawn tractor:

  • John Deere 48: mid-mount 48 in (1,210 mm) mower deck with 3-blades and manual lift
  • John Deere 46: 46 in (1,160 mm) front-mount blade
  • John Deere 44: 44 in (1,110 mm) front-mount snowblower

John Deere E170 Specifications

General Specifications
ModelJohn Deere E170
Length1,940 mm (76.4 in)
Width1,520 mm (59.8 in)
Height1,180 mm (46.5 in)
Wheel base1,240 mm (48.8 in)
Weight229 kg (505 lbs)
Fuel tank capacity9.0 liters (2.4 US gal.; 2 Imp. gal)
Battery12V, CCA: 300A, BCI Group U1
Cabin typeOpen operator station
Engine
Engine modelBriggs & Stratton 44S977
Engine typeFour-stroke, air-cooled, V-twin
Cylinders2
Fuel typeGasoline
Displacement0.7 L, 724 cm2, (44.2 cu·in)
Bore and stroke79.0 mm X 73.0 mm (3.11 in X 2.87 in)
Horsepower25.3 PS (18.6 kW; 25.0 HP)
StarterElectric
Oil typeSAE 10W-30; API: SG or SF
Oil capacity With Easy Change 30-Second Oil Change System:
2.6 L (2.7 US. qt, 2.3 Imp. qt.)
Spark plug gap0.76 mm (0.030 in)
Transmission and chassis
Chassis4×2 2WD
Steering typeManual
BrakesWet disc
Transmission modelTuff Torq HD K46
Transmission typeBelt-driven hydrostatic
GearsInfinite forward and reverse
Speed Forward: 8.9 kmh (5.5 mph) Reverse: 5.2 (3.2 mph)
Tires
Front tiresLawn/turf: 16×6.5-8
Rear tiresLawn/turf: 22×9.5-12
PTO (Power take-off shaft)
Middle PTO typeIndependent with electric clutch
Middle PTO spped
