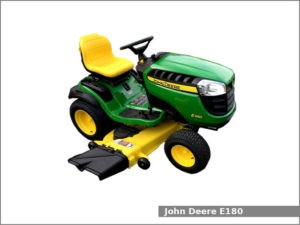

John Deere E180

John Deere E180The John Deere E180 is a 2WD lawn tractor from the E100 series. This tractor has been manufactured by the John Deere in Greeneville, Tennessee, USA since 2018. The John Deere E180 is equipped with a 0.7 L V-twin gasoline engine and belt-driven hydrostatic transmission with infinite forward and reverse gears.

The JD E180 lawn tractor used the Briggs & Stratton 44S977 engine. It is a 0.7 L, 724 cm2, (44.2 cu·in) V-twin natural aspirated gasoline engine with 79.0 mm (3.11 in) of the cylinder bore and 73.0 mm (2.87 in) of the piston stroke. This engine produced 25.3 PS (18.6 kW; 25.0 HP) of maximum output power.

The John Deere E180 is equipped with manual steering, wet disc brakes, open operator station and 9.0 liters (2.4 US gal.; 2 Imp. gal) fuel tank.

Following attachments are available for the JD E180 lawn tractor:

  • John Deere 48: mid-mount 54 in (1,370 mm) mower deck with 3-blades and manual lift
  • John Deere 46: 46 in (1,160 mm) front-mount blade
  • John Deere 44: 44 in (1,110 mm) front-mount snowblower

John Deere E180 Specifications

General Specifications
Model John Deere E180
Length 1,940 mm (76.4 in)
Width 1,740 mm (68.5 in)
Height 1,180 mm (46.5 in)
Wheel base 1,240 mm (48.8 in)
Weight 241 kg (531 lbs)
Fuel tank capacity 9.0 liters (2.4 US gal.; 2 Imp. gal)
Battery 12V, CCA: 300A, BCI Group U1
Cabin type Open operator station
Engine
Engine model Briggs & Stratton 44S977
Engine type Four-stroke, air-cooled, V-twin
Cylinders 2
Fuel type Gasoline
Displacement 0.7 L, 724 cm2, (44.2 cu·in)
Bore and stroke 79.0 mm X 73.0 mm (3.11 in X 2.87 in)
Horsepower 25.3 PS (18.6 kW; 25.0 HP)
Starter Electric
Oil type SAE 10W-30; API: SG or SF
Oil capacity With Easy Change 30-Second Oil Change System:
2.6 L (2.7 US. qt, 2.3 Imp. qt.)
Spark plug gap 0.76 mm (0.030 in)
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual
Brakes Wet disc
Transmission model Tuff Torq HD K46
Transmission type Belt-driven hydrostatic
Gears Infinite forward and reverse
Speed Forward: 8.9 kmh (5.5 mph) Reverse: 5.2 (3.2 mph)
Tires
Front tires Lawn/turf: 16×6.5-8
Rear tires Lawn/turf: 22×9.5-12
PTO (Power take-off shaft)
Middle PTO type Independent with electric clutch
Middle PTO spped
