John Deere L108

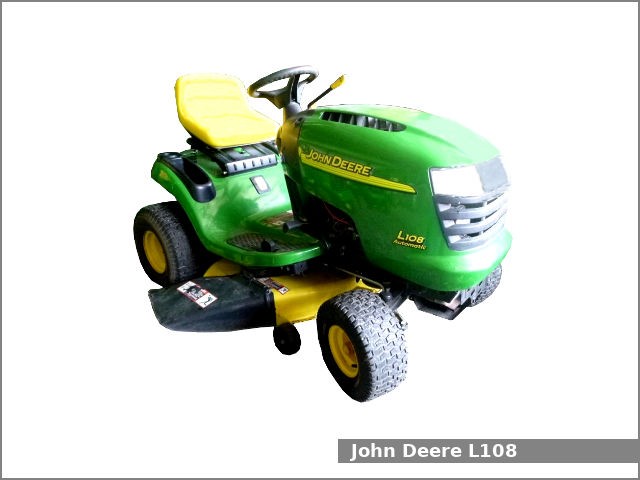

John Deere L108The John Deere L108 is a 2WD lawn tractor from the L100 series. This tractor was manufactured by John Deere in 2005. The John Deere L108 is equipped with a 0.5 L single-cylinder gasoline engine and belt-driven hydrostatic transmission with infinite forward and reverse gears.

The JD L108 lawn tractor used the Briggs & Stratton 31P677 engine. It is a 0.5 L, 500 cm2, (30.51 cu·in) single-cylinder natural aspirated gasoline engine with 90.7 mm (3.57 in) of the cylinder bore and 77.7 mm (3.06 in) of the piston stroke. This engine produced 18.8 PS (13.8 kW; 18.5 HP) of maximum output power.

The John Deere L108 is equipped with manual steering, open operator station and 7.9 liters (2.1 US gal.; 1.7 Imp. gal) fuel tank. The L107 lawn tractor used a mid-mount 42 in (1,060 mm) mower deck with 2-blades with manual lift.

John Deere L108 Specifications

General Specifications
Model John Deere L108
Length 1,750 mm (68.9 in)
Width 910 mm (35.8 in)
Height 980 mm (38.6 in)
Wheel base
Weight 210 kg (463 lbs)
Fuel tank capacity 7.9 liters (2.1 US gal.; 1.7 Imp. gal)
Battery 12V Type BCI Group U1
Cabin type Open operator station
Engine
Engine model Briggs & Stratton 31P677
Engine type Four-stroke, air-cooled, inline
Cylinders 1
Fuel type Gasoline
Displacement 0.5 L, 500 cm2, (30.5 cu·in)
Bore and stroke 90.7 mm X 77.7 mm (3.57 in X 3.06 in)
Horsepower 18.8 PS (13.8 kW; 18.5 HP)
Starter Electric
Oil type SAE 10W-30; API: SG or SF
Oil capacity 1.9 L (2.01 US. qt, 1.67 Imp. qt.)
Spark plug gap 0.76 mm (0.030 in)
Intake valve clearance 0.076-0.127 mm (0.003-0.005 in)
Exhaust valve clearance 0.13-0.18 mm (0.005-0.007 in.)
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual
Brakes
Final drive
Transmission model Tuff Torq K46 HD
Transmission type Belt-driven hydrostatic
Gears Infinite forward and reverse
Speed Forward: 8.8 kmh (5.5 mph) Reverse: 5.1 (3.2 mph)
Tires
Front tires Lawn/turf: 15×6.00-6
Rear tires Lawn/turf: 20×8.0-8
PTO (Power take-off shaft)
Front PTO type Independent with manual clutch
Front PTO spped
