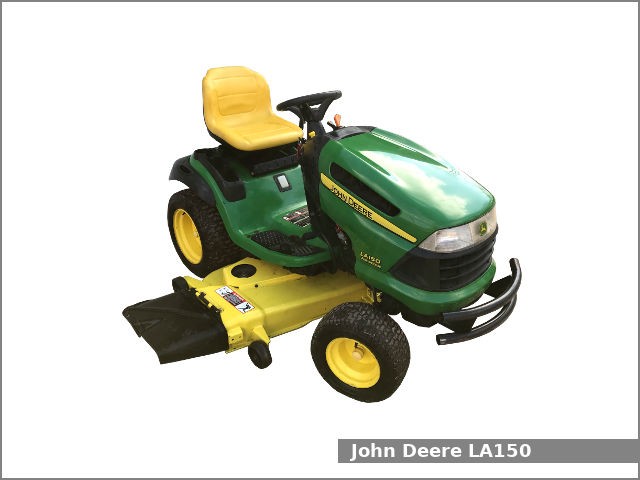

John Deere LA150

John Deere LA150The John Deere LA150 is a lawn and garden tractor from the John Deere LA100-series. The John Deere LA150 lawn tractor was produced at the factory in Greeneville, Tennessee, USA in 2007.

The John Deere LA150 lawn tractor used an air-cooled twin-cylinders four-stroke Briggs & Stratton 44 gasoline engine with vertical PTO-shaft. A 79.25 mm (3.12 in) cylinder bore and 73.4 mm (2.89 in.) piston stroke give the motor a total 724 cc (44.2 cu-in) of displacement. The Briggs & Stratton 44 engine produced 26.0 HP (19.4 kW) of output power.

The John Deere LA150 used belt-driven hydrostatic type transmission Tuff Torq HD K46 (infinite forward and reverse), manual steering and open operator station. This lawn tractor was equipped with mid-mount John Deere 1370.0 mm (54 in) mower deck with 3-blade and manual lift.

John Deere LA150 Specifications

General Specifications
ModelJohn Deere LA150
Length1,760 mm (69.25 in)
Width1,740 mm (68.5 in)
Height1,140 mm (45.0 in)
Wheel base1,240 mm (48.9 in)
Weight262 kg (579 lb)
Fuel tank capacity
Battery12V
Engine
Engine modelBriggs & Stratton 44
FuelGasoline
Displacement724 cc (44.2 cu-in)
Bore x stroke79.2 x 73.4 mm (3.12 x 2.89 in)
Power output26.0 HP (19.4 kW)
Starter typeElectric starter
Oil type10W-30
Oil capacity1.9 L (2.0 US. qt)
Spark plugCHAMPION: RC12YC
Transmission and chassis
Chassis4×2 (2WD)
Transmission typeHydrostatic (Tuff Torq HD K46)
GearsInfinite forward and reverse
Ground speed Forward: up to 8.9 kmh (5.5 mph)
Reverse: up to 5.2 kmh (3.2 mph)
Wheels and tires
Front tiresLawn/turf: 16×6.5-8
Rear tiresLawn/turf: 22×9.5-12
