John Deere X384

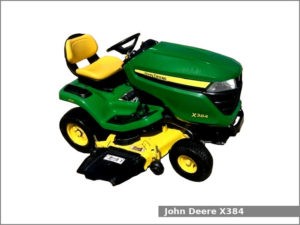

John Deere X384The John Deere X384 is a lawn and garden tractor from the John Deere X-series. The John Deere X384 garden tractor has been produced from 2016.

The John Deere X384 lawn tractor used the Kawasaki FS651V. It is a 726 cc (44.3 cu-in) V-twin 90° air-cooled 4-stroke internal combustion small gasoline engine with a vertical shaft. The FS651V has overhead V-valves, cast iron cylinder liners, and a spherical combustion chamber. The engine is equipped with the electronic spark ignition system, internally vented carburetor with fuel shut-off solenoid. It has a 78.0 mm (3.07 in) cylinder bore and 76.0 mm (2.99 in) piston stroke. The compression ratio rating is 8.2:1. The Kawasaki FS651V produced 22.3 PS (16.4 kW; 22.0 HP) at 3,600 rpm of maximum horsepower and 53.3 Nm (5.4 kg·m; 39.3 ft·lb) at 2,000 rpm of torque.

The John Deere X384 tractor is equipped with the Kanzaki K58 (Tuff Torq K58) variable speed hydrostatic transmission (infinite forward and reverse), wet disc brakes and manual four-wheel steering. This tractor used open operator station, independent PTO-shaft with electric clutch and 12.5 L (3.3 US gal) fuel tank.

Following attachments are available for The John Deere X384 garden tractor:

  • Mid-mount John Deere 48 (Accel Deep Mower) – 1,220 mm (48 in) mower deck with 3-blade and manual lift
  • Front-mount blade – 1,110 mm (44 in) with manual lift
  • Front-mount snow blower – 1,110 mm (44 in) dual-stage with hydraulic lift

John Deere X384 Specifications

General Specifications
ModelJohn Deere X384
Length1,730 mm (72 in)
Width1,040 mm (38.5 in)
Height1,090 mm (41in)
Wheel base1,250 mm (49.4 in)
Weight (without mower deck)253 kg (557 lbs)
Fuel tank capacity12.5 L (3.3 US gal)
Engine Kawasaki FS651V
Engine modelFS651V
Displacement726 cc (44.3
Bore x stroke78.0 x 76.0 mm (3.07 x 2.99 in.)
Power output22.0 HP (16.4 kW) at 3,600 rpm
Starter typeElectric starter
Oil type10W-30
Oil capacity2.1 L (2.2 US.qt.)
Spark plugNGK: BPR4ES
Transmission and chassis
Chassis4×2 (2WD)
Transmission typeHydrostatic transmission (Kanzaki / Tuff Torq K58)
GearsInfinite forward and reverse
Ground speed Forward: up to 10.0 kmh (6.2 mph)
Reverse: up to 5.6 kmh (3.5 mph)
Wheels and tires
Front tiresLawn/turf: 15×6.50-8
Rear tiresLawn/turf: 20×10.00-10
