John Deere X739

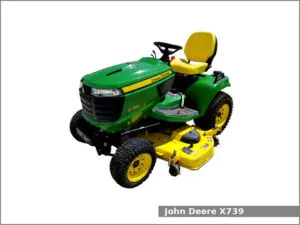

John Deere X739The John Deere X739 is a four-wheel-drive (4WD) lawn and garden tractor from the John Deere X-series. The John Deere X739 garden tractor has been produced at the John Deere Horicon Works plant (Horicon, Wisconsin, USA) from 2013.

The John Deere X739 lawn tractor used the Kawasaki FD750D EFI engine. The Kawasaki FD750D DFI is a 0.75 l (745 cc, 45.46 cu-in) V-twin 90° liquid-cooled 4-stroke internal combustion small gasoline motor with horizontal shaft. The FD711D DFI has OHV (overhead valve design); cast-iron cylinder liners; multi-port digital fuel injection; high-pressure transistorized fuel pump; flywheel magneto transistor ignition system. Cylinder bore and piston stroke are 78.0 mm (3.07 in) and 78.0 mm (3.07 in), respectively. The compression ratio rating is 8.5:1. The Kawasaki FD750D EFI produced 25.5 HP (19.0 kW) at 3,600 rpm.

The John Deere X739 tractor is equipped with the Tuff-Torq K90 two-pedal foot control shaft-driven hydrostatic transmission (infinite forward and reverse), internal wet disc brakes, hydrostatic power four-wheel steering (4WS). This tractor used an open operator station and a 19.7 L (5.2 US gal) fuel tank.

Following attachments are available for the John Deere X739 garden tractor:

  • Mid-mount John Deere 48 – 1,220 mm (48 in) mower deck with 3-blade
  • Mid-mount John Deere 54 – 1,370 mm (54 in) mower deck with 3-blade
  • Mid-mount John Deere 60 – 1,520 mm (60 in) mower deck with 3-blade
  • Front-mount John Deere 54 snow blower – 1,370 mm (54 in) dual-stage snow blower with hydraulic lift

John Deere X739 Specifications

General Specifications
Model John Deere X739
Length 2,000 mm (79.0 in)
Width 1,240 mm (49.0 in)
Height 1,340 mm (52.9 in)
Wheel base 1,410 mm (55.7 in)
Weight (without mower deck) 474 kg (1,045 lbs)
Fuel tank capacity 19.7 L (5.2 US gal)
Battery 12V
Engine
Engine model FD750D EFI
Fuel Gasoline
Displacement 745 cc (45.5 cu.in.)
Bore x stroke 78.0 x 78.0 mm (3.07 x 3.07 in.)
Power output 25.5 HP (19.0 kW) at 3,600 rpm
Starter type Electric starter
Oil type 10W-30
Oil capacity 1.8 L (1.9 US.qt.)
Spark plug NGK: BPR2ES
Transmission and chassis
Chassis Full Time 4×4 HFWD (4WD)
Transmission type Hydrostatic transmission (Tuff Torq K90)
Gears Infinite forward and reverse
Ground speed Forward: up to 13.1 kmh (8.2 mph)
Reverse: up to 9.7 kmh (6.0 mph)
Wheels and tires
Front tires Lawn/turf: 18×8.50-10
Rear tires Lawn/turf: 26×12-12
