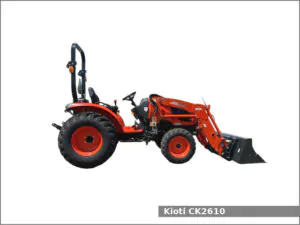

Kioti CK2610

Kioti CK2610The Kioti CK2610 is a 4WD compact utility tractor manufactured by Kioti (a part of Daedong) since 2016. The Kioti CK2610 is equipped with a 1.6 L (100.5 cu·in) three-cylinder diesel engine and one of two transmissions: a gear type transmission with 9 forward and 3 reverse gears and dry disc clutch or a hydrostatic transmission with infinite forward and reverse gears.

The Kioti CK2610 compact utility tractor used the Daedong 3A165LWM-U engine. It is a 1.6 L, 1,647 cm2, (100.5 cu·in) three-cylinder natural aspirated diesel engine with 87.0 mm (3.43 in) of the cylinder bore and 92.0 mm (3.62 in) of the piston stroke. This engine produced 24.9 PS (18.3 kW; 24.5 HP) at 2,600 rpm of output power.

The Kioti CK2610 is equipped with power steering, open operator station, and 34.0 liters (9 US gal.; 7.5 Imp. gal) fuel tank.

Following attachments are available for the Kioti CK2610 compact utility tractor:

  • Kioti KL2610 loader
  • Kioti KB2775L backhoe

Kioti CK2610 Specifications

General Specifications
Model Kioti CK2610
Length 3,070 mm (120.9 in)
Width 1,390 mm (54.7 in)
Height 2,510 mm (98.8 in)
Wheel base 1,660 mm (65.4 in)
Ground clearance 340 mm (13.4 in)
Weight 1,200 kg (2,646 lbs)
Fuel tank capacity 34.0 liters (9 US gal.; 7.5 Imp. gal)
Battery 12V
Cabin type Open operator station
Engine
Engine model Daedong 3A165LWM-U
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 1.6 L, 1,647 cm2, (100.5 cu·in)
Bore and stroke 87.0 mm X 92.0 mm (3.43 in X 3.62 in)
Horsepower 24.9 PS (18.3 kW; 24.5 HP) at 2,600 rpm
Starter Electric
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Power
Brakes
Differential lock Mechanical rear
Transmission model
Transmission type Gear type with dry disc clutch
Gears 9 forward and 3 reverse
Speed Forward: 23.5 kmh (14.6 mph) Reverse: 15.4 (9.6 mph)
Transmission model
Transmission type Hydrostatic
Gears Infinite forward and reverse
Speed Forward: 25.0 kmh (15.5 mph) Reverse: 25.5 (15.8 mph)
Tires
Front tires Ag: 7-16 Lawn/turf: 28×8.5-15
Rear tires Ag: 11.2-24 Lawn/turf: 41×14-20
Three-Point Hitch
Caterogy I
Control type Position control
Lift capacity (at ends) 740 kg (1,630 lbs)
PTO (Power take-off shaft)
Middle PTO type Optional
Middle PTO speed 2,000 rpm
Rear PTO type Live
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Open center
Valves 0 to 2
Pump flow 11.7 gpm (44.3 lpm)
