Kioti CS2510

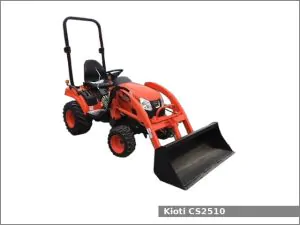

Kioti CS2510The Kioti CS2510 is a 4WD sub-compact utility tractor from the CS series. This tractor has been manufactured by Kioti (a part of Daedong) from 2016. The Kioti CS2510 is equipped with a 1.1 L (69.0 cu·in) three-cylinder diesel engine and a hydrostatic transmission with infinite forward and reverse gears.

The Kioti CS2510 sub-compact utility tractor used the Shibaura S773L engine. It is a 1.1 L, 1,130 cm2, (69.0 cu·in) three-cylinder natural aspirated diesel engine with 77.0 mm (3.03 in) of the cylinder bore and 81.0 mm (3.19 in) of the piston stroke. The compression ratio rating is 24.0:1. This engine produced 24.9 PS (18.3 kW; 24.5 HP) at 3,000 rpm of output power.

The Kioti CS2510 is equipped with power steering, wet disc brakes, two-post folding ROPS or Cab (optional) and 25.4 liters (6.7 US gal.; 5.6 Imp. gal) fuel tank.

Following attachments are available for the Kioti CS2510 sub-compact utility tractor:

  • Mid-mount Kioti SM2410: 1,520 mm (60 in) mower deck with 3-blade
  • Kioti SL2410 loader
  • Kioti SB2410L backhoe

Kioti CS2510 Specifications

General Specifications
Model Kioti CS2510
Length 2,520 mm (99.2 in)
Width 1,180 mm (46.5 in)
Height (cab) 2,120 mm (83.5 in)
Wheel base 1,390 mm (54.7 in)
Ground clearance 160 mm (6.3 in)
Weight 673 kg (1,484 lbs)
Fuel tank capacity 25.4 liters (6.7 US gal.; 5.6 Imp. gal)
Battery 12V
Cabin type Two-post folding ROPS or Cab (optional)
Engine model Shibaura S773L
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 1.1 L, 1,130 cm2, (69.0 cu·in)
Bore and stroke 77.0 mm X 81.0 mm (3.03 in X 3.19 in)
Compression ratio 24.0:1
Horsepower 24.9 PS (18.3 kW; 24.5 HP) at 3,000 rpm
Starter Electric
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Power
Brakes Wet disc
Differential lock Mechanical rear
Transmission model
Transmission type Hydrostatic
Gears Infinite forward and reverse
Speed Forward: 16.6 kmh (10.3 mph) Reverse: 11.3 kmh (7 mph)
Front tires Industrial: 18×8.5-10
Rear tires Industrial: 26×12.00-12
Three-Point Hitch
Category I
Control type Position control
Lift capacity (at 610 mm/24 in) 317 kg (699 lbs)
PTO (Power take-off shaft)
Middle PTO type Independent
Middle PTO speed 2200 rpm
Rear PTO type Independent
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Open center
Total flow 6.5 gpm (24.6 lpm)
