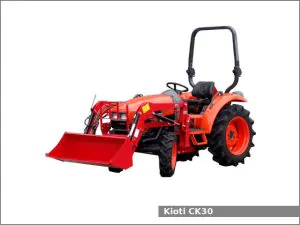

The Kioti CK30 is a 4WD compact utility tractor from the CK series. This tractor was manufactured by Kioti (a part of Daedong) in Daegu, South Korea from 2004 to 2014. The Kioti CK30 is equipped with a 1.5 L (91.5 cu·in) three-cylinder diesel engine and one of two transmissions: a synchronized shuttle transmission with 8 forward and 8 reverse gears or a hydrostatic transmission (CK30HST) with infinite (3-range) forward and reverse gears.
The Kioti CK30 compact utility tractor used the Daedong 3A150 engine. It is a 1.5 L, 1,499 cm2, (91.5 cu·in) three-cylinder natural aspirated diesel engine with 83.0 mm (3.27 in) of the cylinder bore and 92.0 mm (3.62 in) of the piston stroke. This engine produced 30.5 PS (22.4 kW; 30 HP) at 2,600 rpm of output power.
The Kioti CK30 is equipped with power steering, wet disc brakes, two-post foldable ROPS with Canopy (optional), and 30.0 liters (7.9 US gal.; 6.6 Imp. gal) fuel tank.
Following attachments are available for the Kioti CK30 compact utility tractor:
- Kioti KL130 front-end loader
- Kioti KB2375 backhoe
- Kioti KB2365 backhoe
Kioti CK30 Specifications
| General Specifications | |
| Model | Kioti CK30 |
| Length | 3,100 mm (122 in) |
| Width | 1,380 mm (54.3 in) |
| Height | ROPS: 2,450 mm (96.5 in) |
| Wheel base | 1,670 mm (65.7 in) |
| Ground clearance | 350 mm (13.8 in) |
| Weight | Gear: 1,380 kg (3,042 lbs) Hydro: 1,385 kg (3,053 lbs) |
| Fuel tank capacity | 30.0 liters (7.9 US gal.; 6.6 Imp. gal) |
| Battery | 12V |
| Cabin type | Two-post foldable ROPS with Canopy (optional) |
| Engine | |
| Engine model | Daedong 3A150 |
| Engine type | Four-stroke, liquid-cooled, inline |
| Cylinders | 3 |
| Fuel type | Diesel |
| Displacement | 1.5 L, 1,499 cm2, (91.5 cu·in) |
| Bore and stroke | 83.0 mm X 92.0 mm (3.27 in X 3.62 in) |
| Horsepower | 30.5 PS (22.4 kW; 30 HP) at 2,600 rpm |
| Starter | Electric |
| Transmission and chassis | |
| Chassis | 4×4 MFWD 4WD |
| Steering type | Power |
| Brakes | Wet disc |
| Transmission model | – |
| Transmission type | Synchronized shuttle |
| Gears | 8 forward and 8 reverse |
| Speed | Forward: 22.8 kmh (14.2 mph) Reverse: kmh (0 mph) |
| Transmission model | – |
| Transmission type | Hydrostatic |
| Gears | Infinite (3-range) forward and reverse |
| Speed | Forward: 21.1 kmh (13.1 mph) Reverse: kmh (0 mph) |
| Tires | |
| Front tires | Ag: 7-14 Lawn/turf: 27×8.50-15 |
| Rear tires | Ag: 11.2-24 Lawn/turf: 41×14.00-20 |
| Three-Point Hitch | |
| Category | I |
| Control type | – |
| Lift capacity (at ends) | 800 kg (1,765 lbs) |
| PTO (Power take-off shaft) | |
| Middle PTO type | – |
| Middle PTO speed | 2,000 rpm |
| Rear PTO type | Live with two stage clutch |
| Rear PTO speed | 540/1,000 rpm |
| Hydraulic system | |
| Hydraulic type | – |
| Valves | 0 to 2 |
| Total flow | 12.7 gpm (48.1 lpm) |
