Kioti DK5010

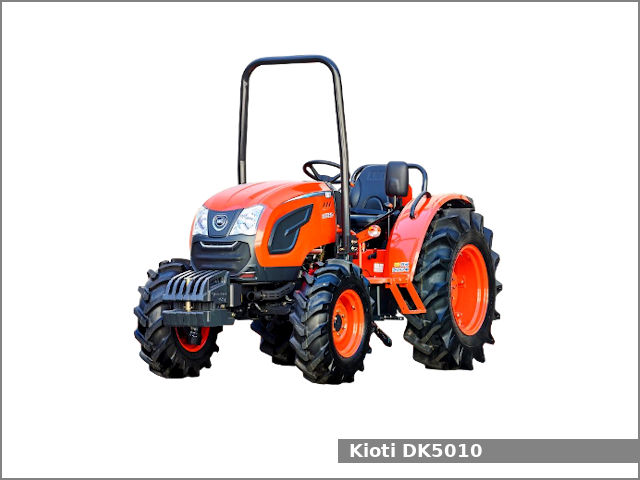

Kioti DK5010The Kioti DK5010 is a 4WD compact utility tractor from the DK10 series. This tractor has been manufactured by Kioti (a part of Daedong) from 2015. The Kioti DK5010 is equipped with a 1.8 L (111.4 cu·in) three-cylinder diesel engine and one of two transmissions: a mechanical shuttle transmission with 8 forward and 8 reverse gears or a power shuttle transmission with 8 forward and 8 reverse gears.

The Kioti DK5010 compact utility tractor used the Daedong 3F183T engine. It is a 1.8 L, 1,825 cm2, (111.4 cu·in) three-cylinder turbocharged diesel engine with 87.0 mm (3.43 in) of the cylinder bore and 102.0 mm (4.02 in) of the piston stroke. This engine produced 50.7 PS (37.3 kW; 50 HP) at 2,600 rpm of output power.

The Kioti DK5010 is equipped with power steering, wet disc brakes, two-post folding ROPS and 45.0 liters (11.9 US gal.; 9.9 Imp. gal) fuel tank.

Following attachments are available for the Kioti DK5010 compact utility tractor:

  • Kioti KL5510 loader
  • Kioti KB2485L backhoe

Kioti DK5010 Specifications

General Specifications
Model Kioti DK5010
Length 3,150 mm (124 in)
Width 1,590 mm (62.6 in)
Height (ROPS) 2,330 mm (91.7 in)
Wheel base 1,810 mm (71.3 in)
Ground clearance 380 mm (15 in)
Weight 1,530 kg (3,373 lbs)
Fuel tank capacity 45.0 liters (11.9 US gal.; 9.9 Imp. gal)
Battery 12V
Cabin type Two-post folding ROPS
Engine
Engine model Daedong 3F183T
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 1.8 L, 1,825 cm2, (111.4 cu·in)
Bore and stroke 87.0 mm X 102.0 mm (3.43 in X 4.02 in)
Horsepower 50.7 PS (37.3 kW; 50 HP) at 2,600 rpm
Torque 166.0 N·m (16.9 kg·m, 122.3 ft·lb) at 1,700 rpm
Starter Electric
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Power
Brakes Wet disc
Differential lock Mechanical rear
Transmission model
Transmission type Mechanical shuttle with dry disc clutch
Gears 8 forward and 8 reverse
Speed Forward: 28.3 kmh (17.6 mph) Reverse: 27.2 kmh (16.9 mph)
Transmission model
Transmission type Power shuttle with wet disc clutch
Gears 8 forward and 8 reverse
Speed Forward: 28.3 kmh (17.6 mph) Reverse: 27.2 kmh (16.9 mph)
Tires
Front tires Ag: 8-16
Lawn/turf: 29-12.5-15
Rear tires Ag: 13.6-24
Lawn/turf: 21.5L-16.1
Three-Point Hitch
Category I
Control type Position control
Lift capacity (at ends) 1230 kg (2712 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Open center
Valves 2
Total flow 14.5 gpm (54.9 lpm)
