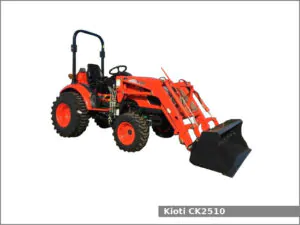

Kioti CK2510

The Kioti CK2510 is a 4WD compact utility tractor from the CK10 series. This tractor was manufactured by Kioti (a part of Daedong) from 2014 to 2018.

The Kioti CK2510 is equipped with one of two engines: the Daedong 3A139LFB – a 1.4 L (85.0 cu·in) three-cylinder diesel engine (2014-2015) or the Daedong 3A165LWD – a 1.6 L (100.5 cu·in) three-cylinder diesel engine (2016-2018) and one of two transmissions: a gear type transmission with dry disc clutch with 6 forward and 2 reverse gears or a hydrostatic transmission (CK2510H) with infinite (2-range) forward and reverse gears.

The tractor could be equipped with the following engines:

  • Daedong 3A139LFB. It is a 1.4 L, 1,393 cm2, (85.0 cu·in) three-cylinder natural aspirated diesel engine with 80.0 mm (3.15 in) of the cylinder bore and 92.0 mm (3.62 in) of the piston stroke. This engine produced 24.9 PS (18.3 kW; 24.5 HP) at 2,600 rpm of output power.
  • Daedong 3A165LWD. It is a 1.6 L, 1,647 cm2, (100.5 cu·in) three-cylinder natural aspirated diesel engine. The cylinder bore is 87.0 mm (3.43 in) and the piston stroke is 92.0 mm (3.62 in). This engine produced 24.9 PS (18.3 kW; 24.5 HP) at 2,600 rpm of output power.

The Kioti CK2510 is equipped with hydrostatic power steering, wet disc brakes, two-post foldable ROPS and 25.0 liters (6.6 US gal.; 5.5 Imp. gal) fuel tank.

Following attachments are available for the Kioti CK2510 compact utility tractor:

From 2014 to 2015

  • Kioti KL2510 loader
  • Kioti KB2465 backhoe

From 2016 to 2018

  • Kioti KL2510QA loader
  • Kioti KB2465 backhoe

Kioti CK2510 Specifications

General Specifications
Model Kioti CK2510
Length 2,770 mm (109.1 in)
Width 1,240 mm (48.8 in)
Height 2,100 mm (82.7 in)
Wheel base 1,510 mm (59.4 in)
Ground clearance 340 mm (13.4 in)
Weight 1,025 kg (2,260 lbs)
Fuel tank capacity 25.0 liters (6.6 US gal.; 5.5 Imp. gal)
Battery 12V
Cabin type Two-post foldable ROPS
Engine
Engine model Daedong 3A139LFB
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 1.4 L, 1,393 cm2, (85.0 cu·in)
Bore and stroke 80.0 mm X 92.0 mm (3.15 in X 3.62 in)
Horsepower 24.9 PS (18.3 kW; 24.5 HP) at 2,600 rpm
Starter Electric
Engine
Engine model Daedong 3A165LWD
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 1.6 L, 1,647 cm2, (100.5 cu·in)
Bore and stroke 87.0 mm X 92.0 mm (3.43 in X 3.62 in)
Horsepower 24.9 PS (18.3 kW; 24.5 HP) at 2,600 rpm
Starter Electric
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes Wet disc
Differential lock Rear standard
Transmission model
Transmission type Gear type with dry disc clutch
Gears 6 forward and 2 reverse
Transmission model
Transmission type Hydrostatic
Gears Infinite (2-range) forward and reverse
Tires
Front tires Ag: 7.0-12
Rear tires Ag: 11.2-16
Three-Point Hitch
Caterogy I
Control type Position control
Lift capacity (at ends) 545 kg (1,200 lbs)
PTO (Power take-off shaft)
Rear PTO type Transmission (gear) or live (hydro)
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Open center
Valves 1 (optional)
Pump flow 11.3 gpm (42.8 lpm)
