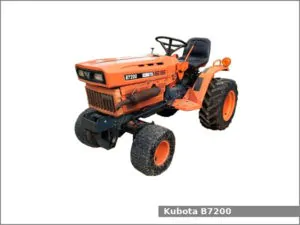

Kubota B7200

Kubota B7200The Kubota B7200 is a 2WD (B7200E) or 4WD (B7200D) compact utility tractor from the B series. This tractor was manufactured by the Kubota in Japan from 1983 to 1990. The Kubota B7200 is equipped with a 0.9 L three-cylinder diesel engine and gear type transmission with dry disc clutch and 6 forward and 2 reverse gears.

The Kubota B7200 compact utility tractor used the Kubota D950-LA engine. It is a 0.9 L, 927 cm2, (56.6 cu·in) three-cylinder natural aspirated diesel engine with 75.0 mm (2.95 in) of the cylinder bore and 70.0 mm (2.76 in) of the piston stroke. The Kubota D950-LA engine has a spherical type combustion chamber, centrifugal ball mechanical governor, Bosch K-type mini fuel injection pump (NP-PFR3KD50/2NP4) and throttle type injection nozzle (ND-DN12SD12). The engine used forced lubricating by a rotor-type pump and forced circulation cooling system with a water pump and radiator. This engine produced 17.3 PS (12.7 kW; 17 HP) at 2,500 rpm of gross horsepower and 14.3 PS (10.5 KW; 14.0 HP) of PTO output power.

The Kubota B7200 is equipped with ball screw type steering, dry internal expanding type (right and left independent with interlocking device brakes), open operator station with two-post ROPS (rollover protection structure) and 15.0 liters (4 US gal.; 3.3 Imp. gal) fuel tank.

Following attachments are available for Kubota B7200 compact utility tractor:

  • Kubota RC-60-72: front-mount 60 in (1,520 mm) 3-blades mower deck
  • Kubota FL850: 33.5 in (850 mm) tiller
  • Kubota B422: 42 in (1,070 mm) tiller
  • Kubota FL1000: 39 in (990 mm) tiller
  • Kubota B340: 48 in (1,220 mm) disc harrow
  • Kubota B380: single-bottom 14 in (305 mm) moldboard plow
  • Kubota B2551: front/rear-mount 51 in (1,290 mm) dual-stage snowblower with a hydraulic lift
  • Kubota B1630C loader
  • Kubota B1640 loader
  • Kubota B1640A loader

Kubota B7200 Specifications

General Specifications
ModelKubota B7200
Length2,540 mm (100 in)
Width (min)940 mm (37 in)
Height1,815 mm (71.5 in)
Wheel base1,400 mm (55.1 in)
Weight 2WD: 505 kg (1,113 lbs)
4WD: 570 kg (1,256 lbs)
Fuel tank capacity15.0 liters (4 US gal.; 3.3 Imp. gal)
Battery12V, 45Ah
Cabin typeOpen operator station with two-post ROPS
Engine modelKubota D950-LA
Engine typeFour-stroke, liquid-cooled, inline
Fuel typeDiesel
Displacement0.9 L, 927 cm2, (56.6 cu·in)
Bore and stroke75.0 mm X 70.0 mm (2.95 in X 2.76 in)
Injection order1-2-3
Injection timing20-22° B.T.D.C.
Injection pressure13.7-14.7 MPa (140-50 kgf/cm2, 1,990-2,130 psi)
Horsepower17.3 PS (12.7 kW; 17 HP) at 2,500 rpm
Torque54.0 N·m (5.5 kg·m, 39.8 ft·lb) at 1,600 rpm
Oil typeAPI:CC
Oil capacity:3.1 L (3.28 US. qt, 2.73 Imp. qt.)
Coolant capacity:2.8 L (2.96 US. qt, 2.46 Imp. qt.)
Transmission and chassis
Chassis4×2 2WD or 4×4 MFWD 4WD
Steering typeBall screw type
BrakesDry internal expanding type, right and left independent with interlocking device
Steering gear box0.2 L (0.2 US. qt, 0.18 Imp. qt.)
Front axle arm (4WD)1.5 L (1.6 US. qt, 1.32 Imp. qt.)
Front axle case (4WD)0.5 L (0.5 US. qt, 0.44 Imp. qt.)
Transmission model
Transmission typeGear type with dry disc clutch
Gears6 forward and 2 reverse
Speed Forward: 12.8 kmh (8 mph) Reverse: 6.4 (4 mph)
Transmission oil capacity12.0 L (12.7 US. qt, 10.6 Imp. qt.)
Front tires B7200E 2WD
Ag: 5.00-10
Lawn/turf: 18×9.50-8

B7200D 4WD
Ag: 6-12B, 6-12
Lawn/turf: 205×8.00-10

Rear tires B7200E 2WD
Ag: 8-16, 9.5-16
Lawn/turf: 29×12.00-15, 31×135-15

B7200D 4WD
Ag: 8-16, 9.5-16
Lawn/turf: 29×12.00-15, 31×13.5-15

Three-Point Hitch
Control type
Lift capacity470 kg (1,036 lbs)
PTO (Power take-off shaft)
Front PTO type
Front PTO spped2,500 rpm
Rear PTO type
Rear PTO spped540/825 rpm
Hydraulic system
Hydraulic typeOpen center
Hydraulic capacity12.0 L (12.68 US. qt, 10.56 Imp. qt.)
Total flow4.0 gpm (15.1 lpm)
