Kubota G2000

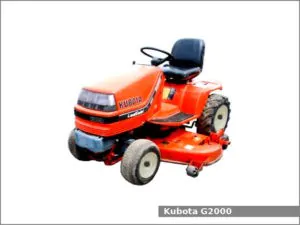

Kubota G2000The Kubota G2000 is a 2WD lawn and garden tractor from the G series. This tractor was manufactured by the Kubota from 1989 to 1997. The Kubota G2000 is equipped with a 0.7 L three-cylinder gasoline engine and shaft-driven hydrostatic transmission with infinite forward and reverse gears.

The Kubota G2000 garden tractor used the Kubota WG750-G engine. It is a 0.7 L, 740 cm2, (45.2 cu·in) three-cylinder natural aspirated gasoline engine with 68.0 mm (2.68 in) of the cylinder bore and 68.0 mm (2.68 in) of the piston stroke. This engine produced 21.4 PS (15.7 kW; 21.0 HP) of maximum output power.

The Kubota G2000 is equipped with manual steering, internal expanding shoe brakes, open operator station and 19.0 liters (5 US gal.; 4.2 Imp. gal) fuel tank.

Following attachments are available for the Kubota G2000 garden tractor:

  • Mid-mount Kubota RC48 48 in (1,210 mm) mower deck with 3-blades
  • Mid-mount Kubota RC54 54 in (1,370 mm) mower deck with 3-blades
  • Mid-mount Kubota RC60 60 in (1,520 mm) mower deck with 3-blades
  • Front-mount Kubota TG2001 48 in (1,210 mm) blade
  • Front-mount Kubota TG2754 54 in (1,370 mm) blade

Kubota G2000 Specifications

General Specifications
Model Kubota G2000
Length 1,865 mm (73.4 in)
Width 1,030 mm (40.6 in)
Height 1,160 mm (45.7 in)
Wheel base 1,270 mm (50 in)
Weight 320 kg (705 lbs)
Fuel tank capacity 19.0 liters (5 US gal.; 4.2 Imp. gal)
Battery 12V, 45Ah
Cabin type Open operator station
Engine
Engine model Kubota WG750-G
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Gasoline
Displacement 0.7 L, 740 cm2, (45.2 cu·in)
Bore and stroke 68.0 mm X 68.0 mm (2.68 in X 2.68 in)
Horsepower 21.4 PS (15.7 kW; 21.0 HP)
Starter Electric
Spark plug NGK BKR4E-11
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual
Brakes Internal expanding shoe
Transmission model HST
Transmission type Shaft-driven hydrostatic
Gears Infinite forward and reverse
Speed Forward: 13.0 kmh (8.1 mph) Reverse: 6.0 (3.7 mph)
Tires
Front tires Lawn/turf: 16×6.5-8.00
Rear tires Lawn/turf: 23×10.5-12, 23×8.5-12
Hitch
Caterogy 0
PTO (Power take-off shaft)
Rear PTO type
Rear PTO spped 2,000 rpm
