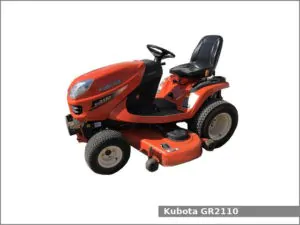

The Kubota GR2110 is a 4WD lawn and garden tractor from the GR series. This tractor was manufactured by Kubota from 2008 to 2009. The Kubota GR2110 is equipped with a 0.8 L (47.5 cu·in) three-cylinder diesel engine and a hydrostatic transmission with infinite forward and reverse gears.
The Kubota GR2110 garden tractor used the Kubota D782 engine. It is a 0.8 L, 778 cm2, (47.5 cu·in) three-cylinder natural aspirated diesel engine with 67.0 mm (2.64 in) of the cylinder bore and 73.6 mm (2.9 in) of the piston stroke. This engine produced 21.4 PS (15.7 kW; 21.0 HP) at 3,200 rpm of output power.
The Kubota GR2110 is equipped with hydrostatic power steering, internal expanding brake brakes, open operator station, and 18.2 liters (4.8 US gal.; 4 Imp. gal) fuel tank.
Following attachments are available for the Kubota GR2110 garden tractor:
- Mid-mount Kubota: 48 in (1,210 mm) mower deck with 3-blades and hydraulic lift
- Mid-mount Kubota: 54 in (1,370 mm) mower deck with 3-blades and hydraulic lift
Kubota GR2110 Specifications
| General Specifications | |
| Model | Kubota GR2110 |
| Length | 1,950 mm (76.8 in) |
| Width | 1,680 mm (66.1 in) |
| Height | 1,220 mm (48 in) |
| Wheel base | 1,280 mm (50.4 in) |
| Weight | 430 kg (948 lbs) |
| Fuel tank capacity | 18.2 liters (4.8 US gal.; 4 Imp. gal) |
| Battery | 12V, 75Ah |
| Cabin type | Open operator station |
| Engine | |
| Engine model | Kubota D782 |
| Engine type | Four-stroke, liquid-cooled, inline |
| Cylinders | 3 |
| Fuel type | Diesel |
| Displacement | 0.8 L, 778 cm2, (47.5 cu·in) |
| Bore and stroke | 67.0 mm X 73.6 mm (2.64 in X 2.9 in) |
| Horsepower | 21.4 PS (15.7 kW; 21.0 HP) at 3,200 rpm |
| Starter | Electric |
| Oil capacity: | 2.8 L (3 US. qt, 2.5 Imp. qt.) |
| Transmission and chassis | |
| Chassis | 4×4 MFWD 4WD |
| Steering type | Glide Steer, hydrostatic power |
| Brakes | Internal expanding brake |
| Transmission model | – |
| Transmission type | Hydrostatic |
| Gears | Infinite forward and reverse |
| Speed | Forward: 10.0 kmh (6.2 mph) Reverse: 5.0 (3.1 mph) |
| Transmission oil capacity | 2.5 L (0.7 US. gal, 0.5 Imp. gal.) |
| Tires | |
| Front tires | Lawn/turf: 16×7.5-8 |
| Rear tires | Lawn/turf: 23×10.50-12 |
